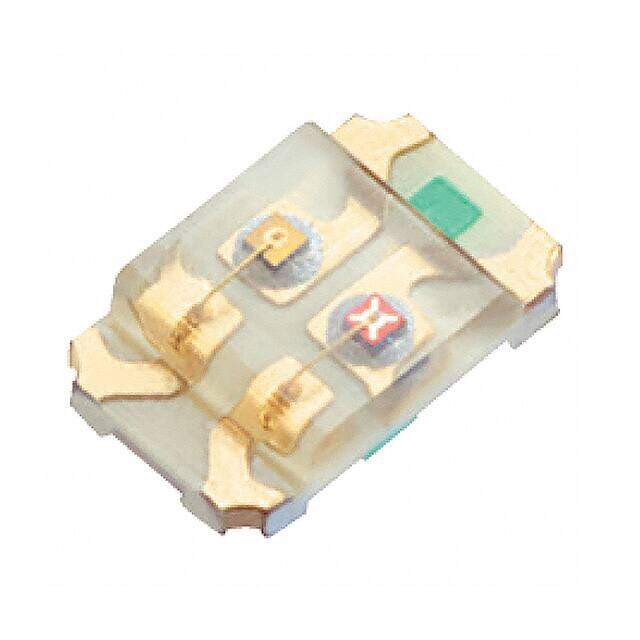

XZCBDMOK54W-4
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE/ORANGE CLEAR CHIP SMD
PDF
/
Buying Options
Total Price: USD $0.67
Unit Price: USD $0.6688
≥1 USD $0.6688
≥10 USD $0.43296
≥100 USD $0.283712
≥500 USD $0.223978
Inventory: 1143
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Surface Mount YES
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2018
Size / Dimension 2.00mm Lx1.25mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Color Blue, Orange
Packing Method TR, 7 INCH
Number of Functions 1
Terminal Pitch 1.8mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 3.3V Blue 2.1V Orange
Viewing Angle 120°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Blue 20mA Orange
Lens Style Rectangle with Flat Top
Lens Size 1.30mmx1.25mm
Luminous Intensity 248.0/79.0 mcd
Millicandela Rating 79mcd Blue, 248mcd Orange
Lens Transparency Clear
Wavelength - Peak 460nm Blue 610nm Orange
Lens Color Colorless
Forward Current-Max 0.03A
Overall Height 0.45mm
Wavelength - Dominant 465nm Blue 605nm Orange
Dimensions
Height (Max) 0.45mm
Compliance
RoHS Status ROHS3 Compliant
