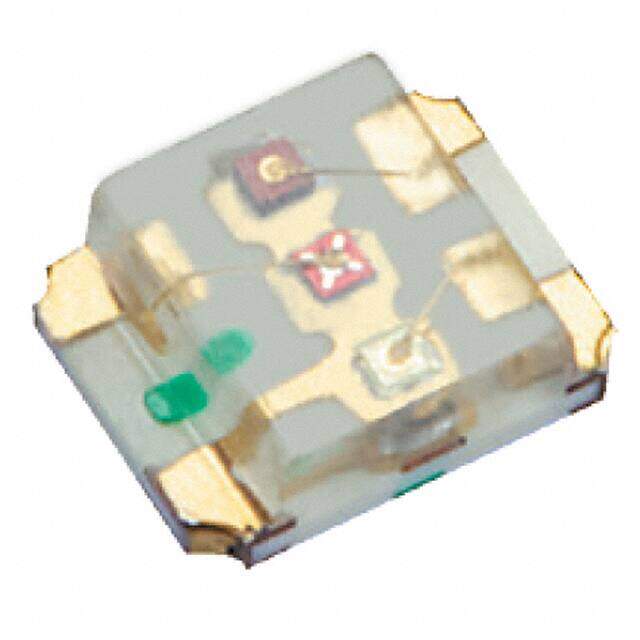

XZCBDMDKDG62W-2
RoHS
RoHS compliant
RoHS compliantPackage 0605 (1613 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR 0605 SMD
PDF
/
Buying Options
Total Price: USD $0.98
Unit Price: USD $0.9768
≥1 USD $0.9768
≥10 USD $0.61512
≥100 USD $0.455488
≥500 USD $0.418528
≥1000 USD $0.344678
Inventory: 346
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 520μm
Technical
Wavelength - Dominant 630nm Red 525nm Green 465nm Blue
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 645nm Red 515nm Green 460nm Blue
Lens Transparency Clear
Millicandela Rating 79mcd Red, 278mcd Green, 69mcd Blue
Luminous Intensity 69 mcd
Lens Size 1.10mmx1.26mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Red 20mA Green 20mA Blue
Optoelectronic Device Type TRIPLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 1.95V Red 3.3V Green 3.3V Blue
Configuration Common Anode
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Red, Green, Blue (RGB)
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 1.60mm Lx1.26mm W
Published 2008
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Package / Case 0605 (1613 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
