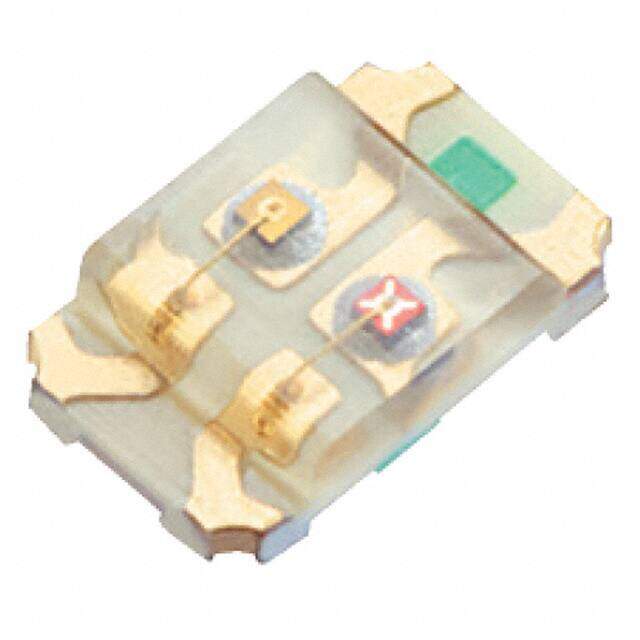

XZCBDMDK54W-4
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE/RED CLEAR 0805 SMD
PDF
/
Buying Options
Total Price: USD $0.61
Unit Price: USD $0.6072
≥1 USD $0.6072
≥10 USD $0.40128
≥100 USD $0.265584
≥500 USD $0.205084
Inventory: 759
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2011
Size / Dimension 2.00mm Lx1.25mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
ECCN Code EAR99
Color Blue, Red
HTS Code 8541.40.20.00
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 1.8mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 3.3V Blue 1.95V Red
Viewing Angle 120°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Blue 20mA Red
Lens Style Rectangle with Flat Top
Lens Size 1.20mmx1.25mm
Luminous Intensity 79 mcd
Millicandela Rating 79mcd Blue, 79mcd Red
Lens Transparency Clear
Wavelength - Peak 460nm Blue 645nm Red
Lens Color Colorless
Forward Current-Max 0.03A
Wavelength - Dominant 465nm Blue 630nm Red
Dimensions
Height 450μm
Compliance
RoHS Status ROHS3 Compliant
