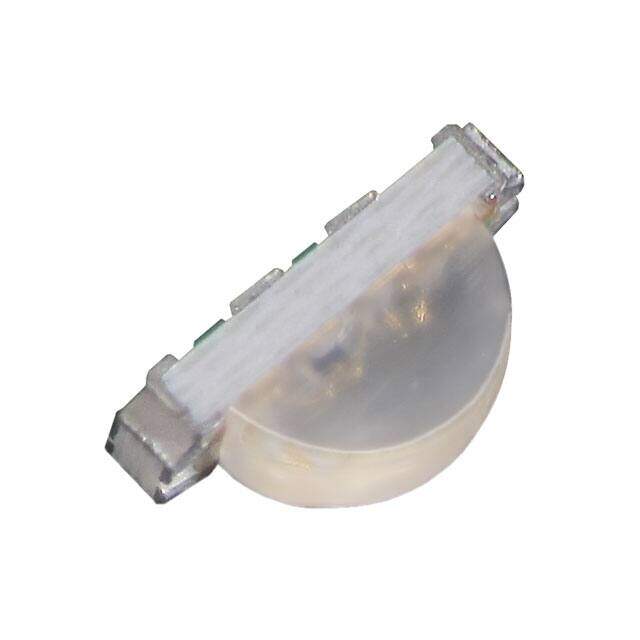

XZCBDDGME56W
RoHS
RoHS compliant
RoHS compliantPackage 4-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR SMD R/A
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5104
≥1 USD $0.5104
≥10 USD $0.33
≥100 USD $0.21604
≥500 USD $0.2002
Inventory: 30264
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type Surface Mount, Right Angle
Package / Case 4-SMD, No Lead
Surface Mount YES
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Size / Dimension 3.00mm Lx1.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Color Red, Green, Blue (RGB)
Packing Method TR, 7 INCH
Number of Functions 1
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2V Red 3.3V Green 3.3V Blue
Viewing Angle 120°
Optoelectronic Device Type TRIPLE COLOR LED
Current - Test 20mA Red 20mA Green 20mA Blue
Lens Style Rectangle with Domed Top
Lens Size 2.00mmx1.00mm
Luminous Intensity 447.0/397.0/69.0 mcd
Millicandela Rating 69mcd Red, 397mcd Green, 447mcd Blue
Lens Transparency Clear
Wavelength - Peak 630nm Red 515nm Green 468nm Blue
Lens Color Colorless
Forward Current-Max 0.025A
Overall Height 1mm
Wavelength - Dominant 621nm Red 525nm Green 470nm Blue
Dimensions
Height (Max) 1.50mm
Compliance
RoHS Status ROHS3 Compliant
