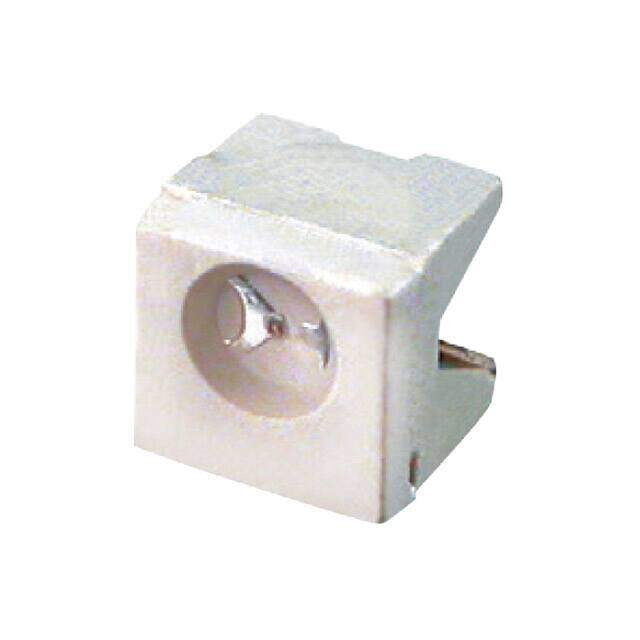

XZCBD67S
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, Boomerang
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE CLEAR 2SMD R/A
PDF
/
Inventory: 2788
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 4mm
Technical
Wavelength - Dominant 465nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 460nm
Lens Transparency Clear
Luminous Intensity 218 mcd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 120°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.5mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Color Blue
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Size / Dimension 4.00mm Lx3.60mm W
Published 2014
Packaging Tape & Reel (TR)
Physical
Package / Case 2-SMD, Boomerang
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
