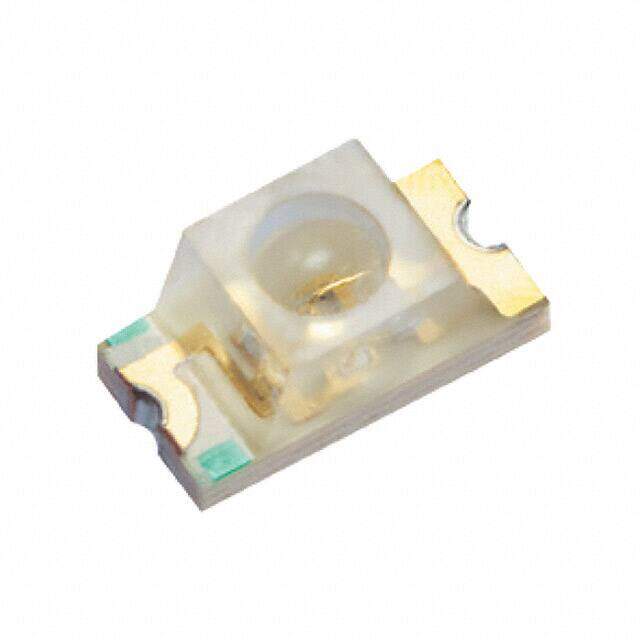

XZCBD60W
RoHS
RoHS compliant
RoHS compliantPackage 1206 (3016 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED BLUE CLEAR 1206 SMD
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.25608
≥100 USD $0.147224
≥500 USD $0.115192
Inventory: 30064
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 1.4mm
Technical
Wavelength - Dominant 465nm
Forward Current-Max 0.03A
Lens Color Colorless
Wavelength - Peak 460nm
Lens Transparency Clear
Luminous Intensity 198 mcd
Lens Size 2.00mmx1.50mm
Lens Style Rectangle with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 70°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 3mm
Number of Functions 1
Packing Method TR, 7 INCH
Color Blue
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 3.00mm Lx1.50mm W
Published 2011
Packaging Tape & Reel (TR)
Physical
Shape ROUND
Package / Case 1206 (3016 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
