XSUY18D
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

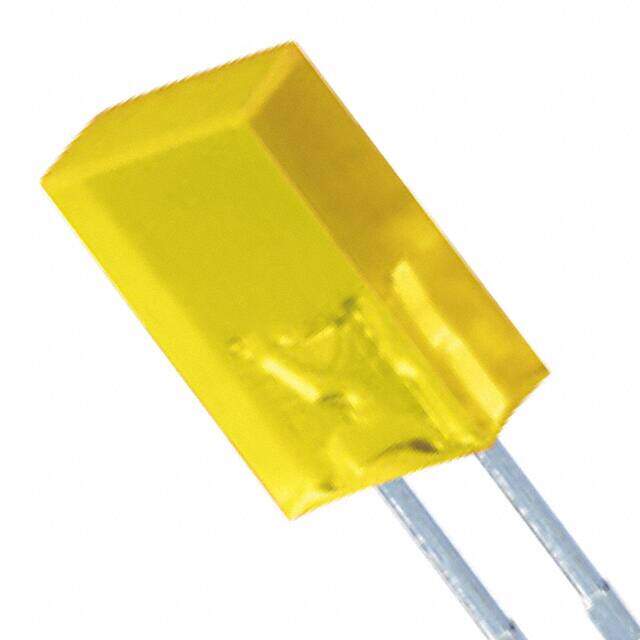

LED YELLOW DIFF RECT 2MMX5MM T/H
PDF
/
Buying Options
Total Price: USD $0.29
Unit Price: USD $0.2904
≥1 USD $0.2904
≥10 USD $0.22704
≥100 USD $0.101904
≥500 USD $0.075636
≥1000 USD $0.059198
≥3000 USD $0.052615
Inventory: 1265
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 7mm
Technical
Wavelength - Dominant 588nm
Forward Current-Max 0.03A
Wavelength - Peak 590nm
Lens Transparency Diffused
Luminous Intensity 4 mcd
Lens Size 5.00mmx2.00mm
Lens Style Rectangle with Flat Top
Current - Test 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 1.95V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Color Yellow
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2011
Packaging Bulk
Physical
Shape RECTANGULAR
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
