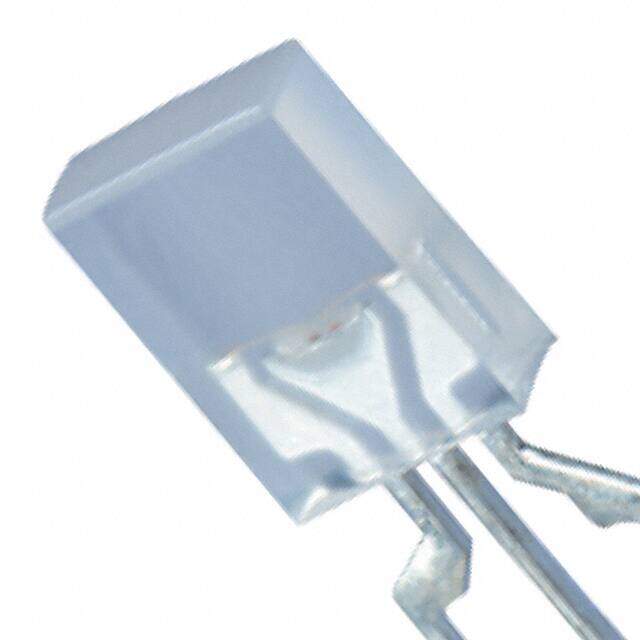

XSUGR47M
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN/RED DIFFUSED RECT T/H
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.22264
≥100 USD $0.127864
≥500 USD $0.100091
≥1000 USD $0.0979
Inventory: 3681
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 7mm
Technical
Wavelength - Dominant 568nm Green 617nm Red
Forward Current-Max 0.03A
Lens Color White
Wavelength - Peak 565nm Green 627nm Red
Lens Transparency Diffused
Millicandela Rating 8mcd Green, 9mcd Red
Luminous Intensity 9 mcd
Lens Size 5.00mmx2.00mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Green 20mA Red
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 2.2V Green 2V Red
Configuration Common Cathode
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
HTS Code 8541.40.20.00
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
Color Green, Red
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2005
Packaging Bulk
Physical
Shape RECTANGULAR
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
