XSMYK43MB
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

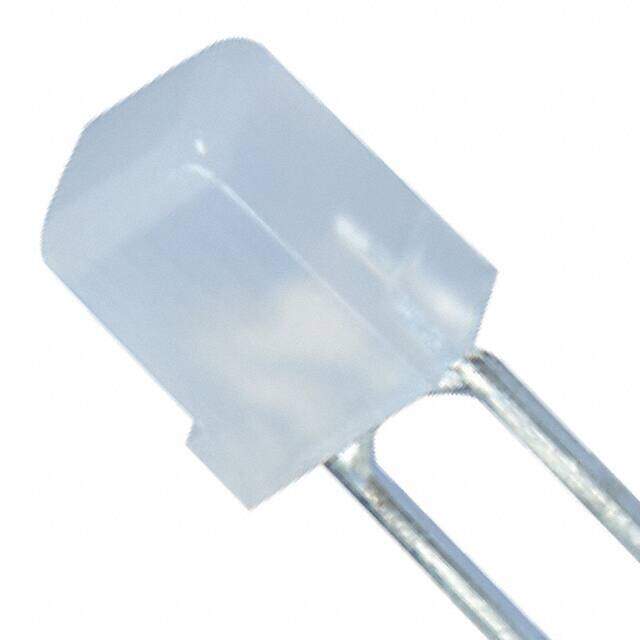

LED YELLOW DIFFUSED ICE CUBE T/H
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.17512
≥100 USD $0.11704
≥500 USD $0.080978
≥1000 USD $0.067478
≥3000 USD $0.060729
Inventory: 12556
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Technical
Packaging Bulk
Published 2010
Series Ice Cube
Size / Dimension 3.00mm Lx3.00mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Color Yellow
HTS Code 8541.40.20.00
Packing Method BOX/BAG
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 110°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Square with Flat Top
Lens Size 3.00mm
Luminous Intensity 98 mcd
Lens Transparency Diffused
Lens Color White
Forward Current-Max 0.03A
Wavelength - Dominant 590nm
Peak Wavelength 590 nm
Dimensions
Height 4.8mm
Compliance
RoHS Status ROHS3 Compliant
