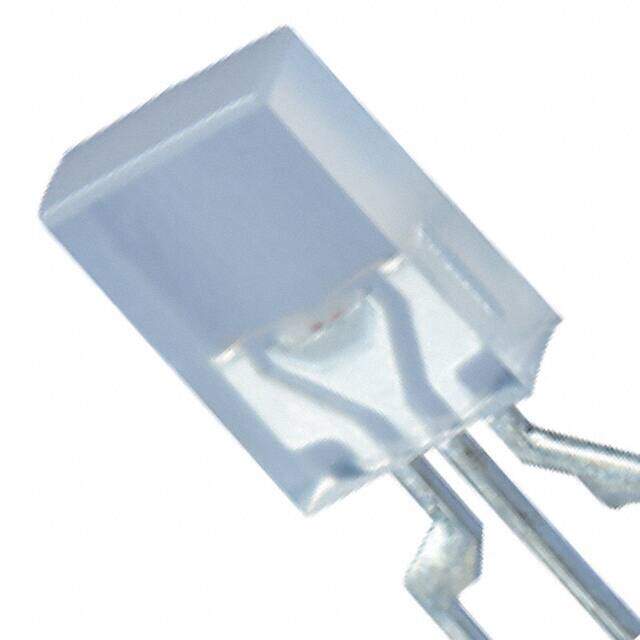

XSMDKVG47M
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN/RED DIFFUSED RECT T/H
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.6336
≥1 USD $0.6336
≥10 USD $0.41536
≥100 USD $0.271885
≥500 USD $0.21465
≥1000 USD $0.193178
≥3000 USD $0.190318
Inventory: 1930
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Shape RECTANGULAR
Technical
Packaging Bulk
Published 2013
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 3
ECCN Code EAR99
Color Green, Red
Additional Feature IC COMPATIBLE, HIGH RELIABILITY
HTS Code 8541.40.20.00
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Common Cathode
Voltage - Forward (Vf) (Typ) 2.1V Green 1.95V Red
Viewing Angle 110°
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Red
Lens Style Rectangle with Flat Top
Lens Size 5.00mmx2.00mm
Luminous Intensity 54 mcd
Millicandela Rating 29mcd Green, 54mcd Red
Lens Transparency Diffused
Wavelength - Peak 574nm Green 645nm Red
Lens Color White
Forward Current-Max 0.03A
Wavelength - Dominant 570nm Green 630nm Red
Dimensions
Height 7mm
Compliance
RoHS Status ROHS3 Compliant
