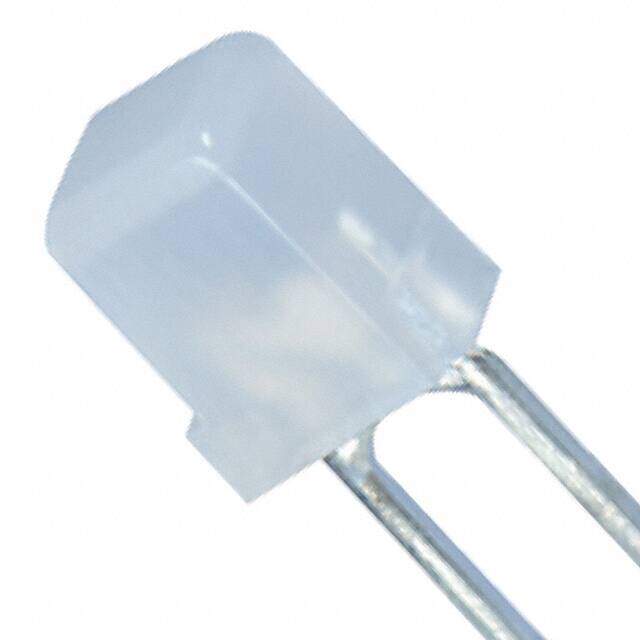

XSMDK43MB
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED DIFFUSED ICE CUBE T/H
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.2728
≥100 USD $0.125858
≥500 USD $0.104878
≥1000 USD $0.089144
≥3000 USD $0.081277
Inventory: 1443
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 4.8mm
Technical
Wavelength - Dominant 630nm
Forward Current-Max 0.03A
Lens Color White
Wavelength - Peak 645nm
Lens Transparency Diffused
Luminous Intensity 39 mcd
Lens Size 3.00mm
Lens Style Square with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 1.95V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
Packing Method BOX/BAG
HTS Code 8541.40.20.00
Color Red
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 3.00mm Lx3.00mm W
Series Ice Cube
Published 2013
Packaging Bulk
Physical
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
