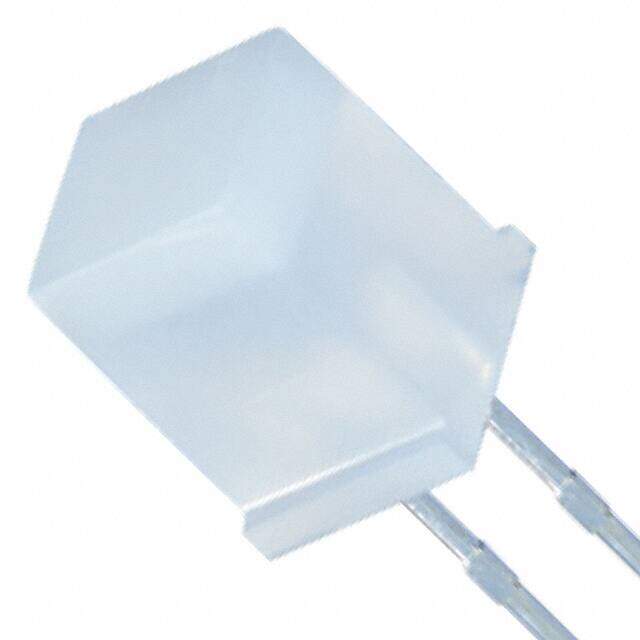

XSMDK23MB
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED DIFFUSED ICE CUBE T/H
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.24992
≥100 USD $0.166584
≥500 USD $0.115192
≥1000 USD $0.09599
≥3000 USD $0.08639
Inventory: 6972
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Technical
Packaging Bulk
Published 2013
Series Ice Cube
Size / Dimension 5.00mm Lx5.00mm W
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Color Red
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Packing Method BOX/BAG
Number of Functions 1
Terminal Pitch 2.54mm
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.95V
Viewing Angle 110°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Square with Flat Top
Lens Size 5.00mm
Luminous Intensity 29 mcd
Lens Transparency Diffused
Wavelength - Peak 645nm
Lens Color White
Forward Current-Max 0.03A
Wavelength - Dominant 630nm
Dimensions
Height 7.2mm
Compliance
RoHS Status ROHS3 Compliant
