XSCBD23MB
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description

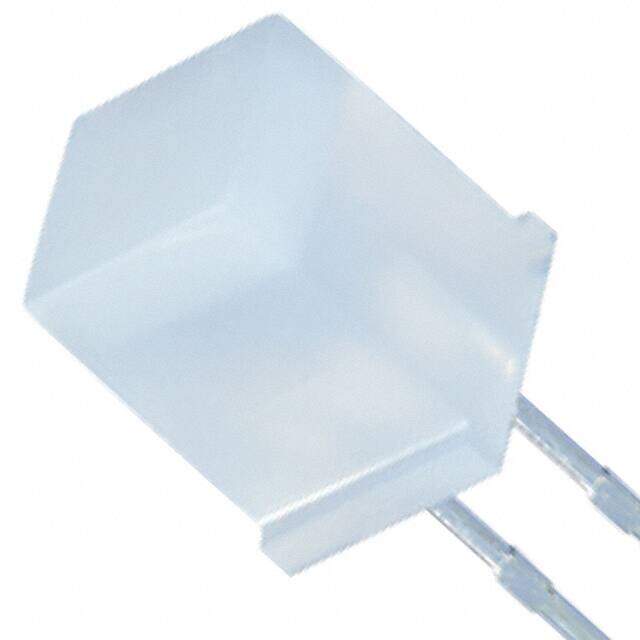

460nm Blue LED; 5x5x7.2mm Through-Hole Mount with Ice Cube (Square Diffused), Square Lens
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.25608
≥100 USD $0.147189
≥500 USD $0.115192
≥1000 USD $0.09599
≥3000 USD $0.089593
Inventory: 1178
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 7.2mm
Technical
Wavelength - Dominant 465nm
Forward Current-Max 0.03A
Lens Color White
Wavelength - Peak 460nm
Lens Transparency Diffused
Luminous Intensity 29 mcd
Lens Size 5.00mm
Lens Style Square with Flat Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 110°
Voltage - Forward (Vf) (Typ) 3.3V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
Packing Method BOX/BAG
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Color Blue
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Size / Dimension 5.00mm Lx5.00mm W
Series Ice Cube
Published 2013
Packaging Bulk
Physical
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
