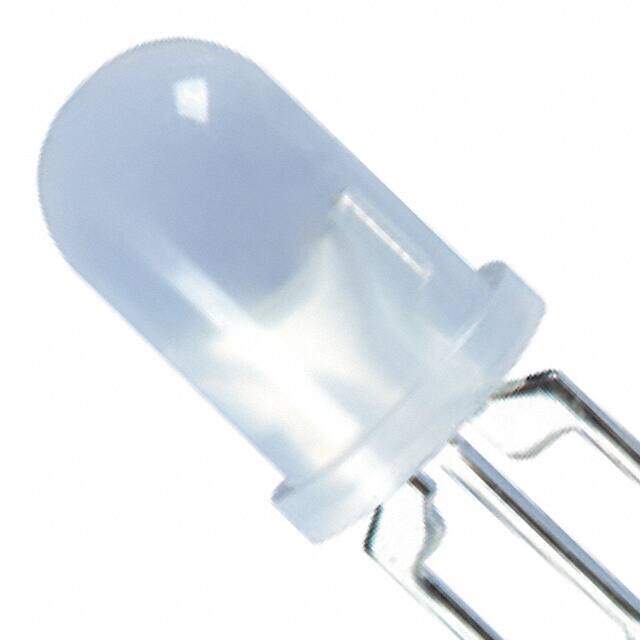

XLUGY59M
RoHS
RoHS compliant
RoHS compliantPackage Radial - 3 Leads
Category Optoelectronics / LED Indication - Discrete
Description
LED GRN/YELLOW DIFF T-1 3/4 T/H
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5104
≥1 USD $0.5104
≥10 USD $0.3168
≥100 USD $0.181931
≥500 USD $0.142384
≥1000 USD $0.118659
≥3000 USD $0.110748
Inventory: 772
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 8.6mm
Technical
Wavelength - Dominant 568nm Green 588nm Yellow
Forward Current-Max 0.03A
Lens Color White
Wavelength - Peak 565nm Green 590nm Yellow
Lens Transparency Diffused
Millicandela Rating 98mcd Green, 39mcd Yellow
Luminous Intensity 39 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 20mA Green 20mA Yellow
Optoelectronic Device Type DUAL COLOR LED
Viewing Angle 60°
Voltage - Forward (Vf) (Typ) 2.2V Green 2.1V Yellow
Configuration Common Cathode
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
HTS Code 8541.40.20.00
Additional Feature IC COMPATIBLE
Color Green, Yellow
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2013
Packaging Bulk
Physical
Package / Case Radial - 3 Leads
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
