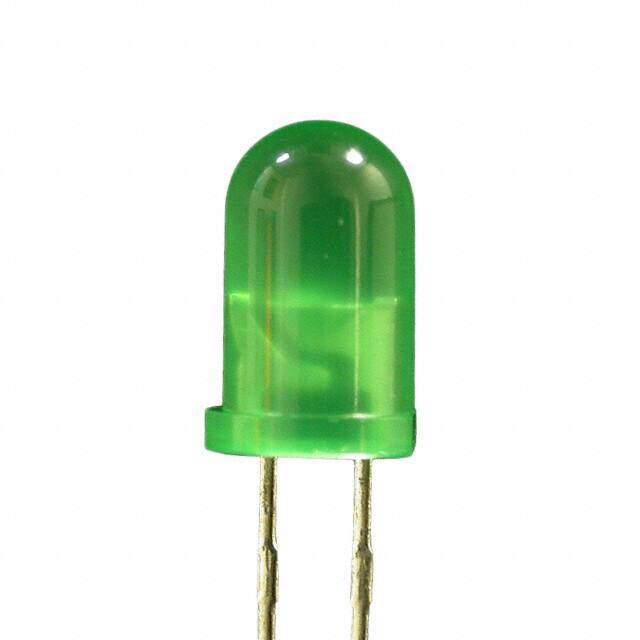

XLUG12D
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN DIFFUSED T-1 3/4 T/H
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height 8.6mm
Technical
Wavelength - Dominant 568nm
Forward Current-Max 0.025A
Wavelength - Peak 565nm
Lens Transparency Diffused
Luminous Intensity 29 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 30°
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Terminal Pitch 2.54mm
Number of Functions 1
Packing Method TAPE AND REEL
HTS Code 8541.40.20.00
Additional Feature HIGH RELIABILITY
Color Green
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2005
Packaging Bulk
Physical
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
