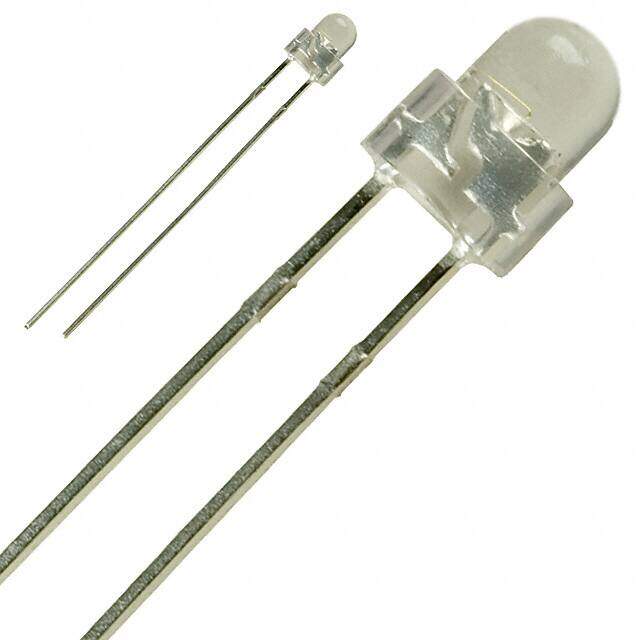

THG3801C
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR T/H
PDF
/
Inventory: 6293
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Through Hole
Package / Case Radial
Surface Mount NO
Technical
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Color Green
Packing Method BOX/BAG
Number of Functions 1
Terminal Pitch 2.5mm
Reach Compliance Code compliant
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 3V
Viewing Angle 15°, 15°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 5mA
Lens Style Round with Domed Top
Lens Size 3mm T-1
Luminous Intensity 3500.0 mcd
Millicandela Rating 3500mcd
Lens Transparency Clear
Wavelength - Peak 520nm
Lens Color Colorless
Forward Current-Max 0.01A
Overall Height 5.2mm
Wavelength - Dominant 530nm
T-code T-1
Dimensions
Height (Max) 5.90mm
Compliance
RoHS Status RoHS Compliant
