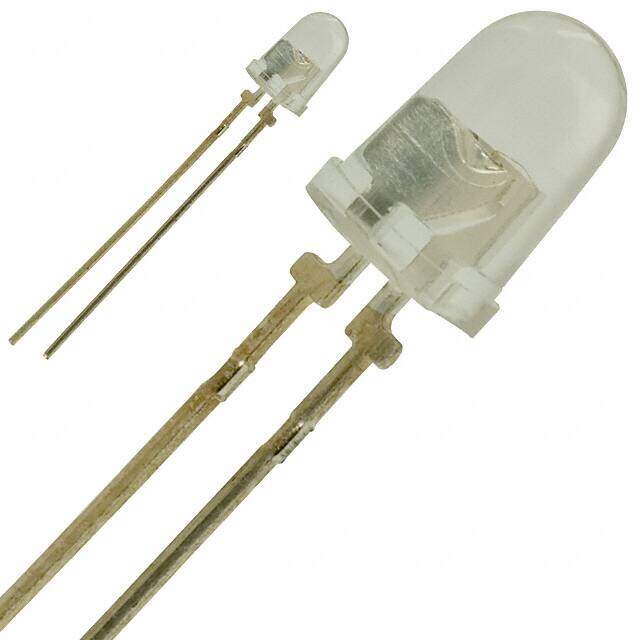

KR5005S
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description
Red 5 mm 25° 300 mcd Water Clear 1.8 V Round LED Through Hole
PDF
/
Buying Options
Total Price: USD $1.23
Unit Price: USD $1.232813
≥1 USD $1.232813
≥200 USD $0.492338
≥400 USD $0.476583
≥1000 USD $0.467392
Inventory: 3282
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Technical
Packaging Bulk
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Red
Number of Functions 1
Depth 5.6mm
Number of Elements 1
Configuration Standard
Power Dissipation 125mW
Voltage - Forward (Vf) (Typ) 1.8V
Viewing Angle 25°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 50mA
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 300 mcd
Lens Transparency Clear
Wavelength - Peak 660nm
Lens Color Colorless
Reverse Voltage 4V
Wavelength - Dominant 647nm
Dimensions
Diameter 5mm
Height 9.8mm
Length 5.6mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
