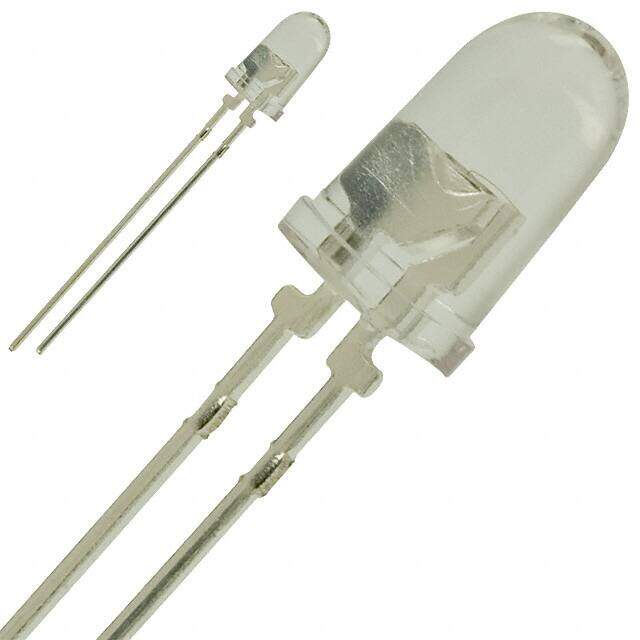

H-3000L
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description
Red 5 mm 10° 3000 mcd Water Clear 1.8 V Ultra High Brightness LED Through Hole
PDF
/
Inventory: 4369
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Technical
Packaging Bulk
Published 2007
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Red
Number of Functions 1
Depth 5.6mm
Reach Compliance Code unknown
Number of Elements 1
Configuration Standard
Power Dissipation 125mW
Voltage - Forward (Vf) (Typ) 1.8V
Viewing Angle 10°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 50mA
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 3 cd
Millicandela Rating 3000mcd
Lens Transparency Clear
Wavelength - Peak 660nm
Lens Color Colorless
Reverse Voltage 4V
Wavelength - Dominant 647nm
Dimensions
Diameter 5mm
Height 7.6mm
Length 5.6mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
