H-2000L
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description

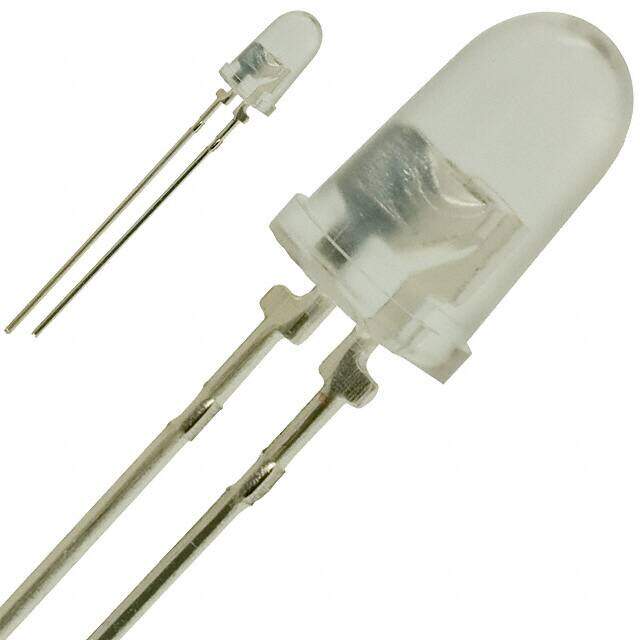

LED RED CLEAR 5MM ROUND T/H
PDF
/
Inventory: 1000
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Lens Size 5mm T-1 3/4
Luminous Intensity 2 cd
Millicandela Rating 2000mcd
Lens Transparency Clear
Wavelength - Peak 660nm
Lens Color Colorless
Forward Current-Max 0.05A
Wavelength - Dominant 647nm
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 10°
Voltage - Forward (Vf) (Typ) 1.8V
Configuration Standard
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Reach Compliance Code unknown
Number of Functions 1
Color Red
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Packaging Bulk
Dimensions
Diameter 5mm
Height 10.7mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
