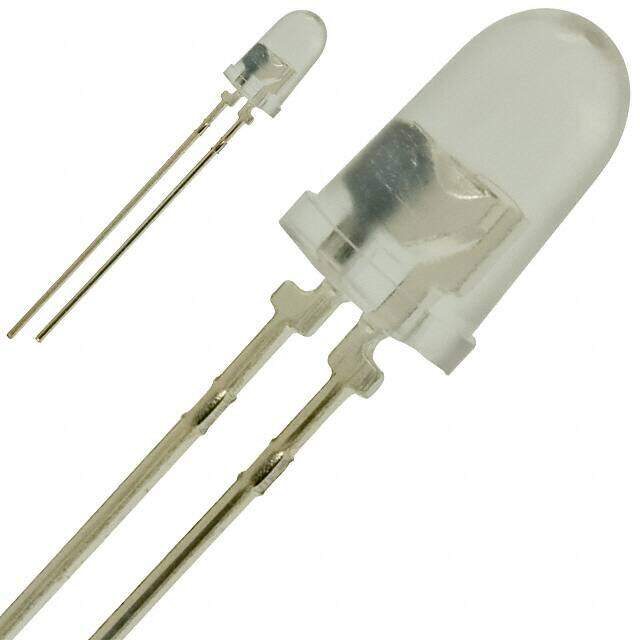

H-1000L
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 5MM ROUND T/H
PDF
/
Inventory: 1541
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 10.7mm
Diameter 5mm
Technical
Wavelength - Dominant 647nm
Forward Current-Max 0.05A
Lens Color Colorless
Wavelength - Peak 660nm
Lens Transparency Clear
Millicandela Rating 1000mcd
Luminous Intensity 1 cd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 10°
Voltage - Forward (Vf) (Typ) 1.8V
Configuration Standard
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Number of Functions 1
Color Red
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Packaging Bulk
Physical
Number of Pins 2
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
