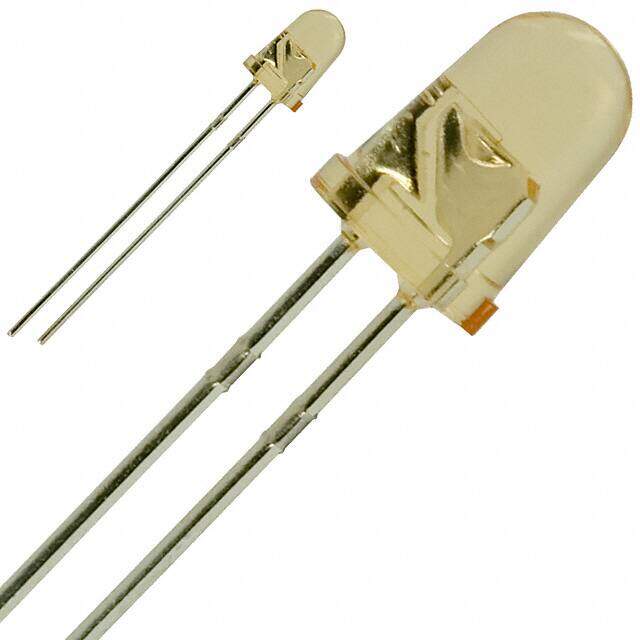

EFY5365S
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED YELLOW CLEAR 5MM ROUND T/H
PDF
/
Inventory: 9016
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Technical
Packaging Bulk
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
ECCN Code 3A001.A.6.B
Color Yellow
Number of Functions 1
Reach Compliance Code unknown
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.9V
Viewing Angle 45°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 1 cd
Millicandela Rating 1000mcd
Lens Transparency Clear
Wavelength - Peak 592nm
Forward Current-Max 0.05A
Wavelength - Dominant 590nm
Dimensions
Diameter 5mm
Height 6.6mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
