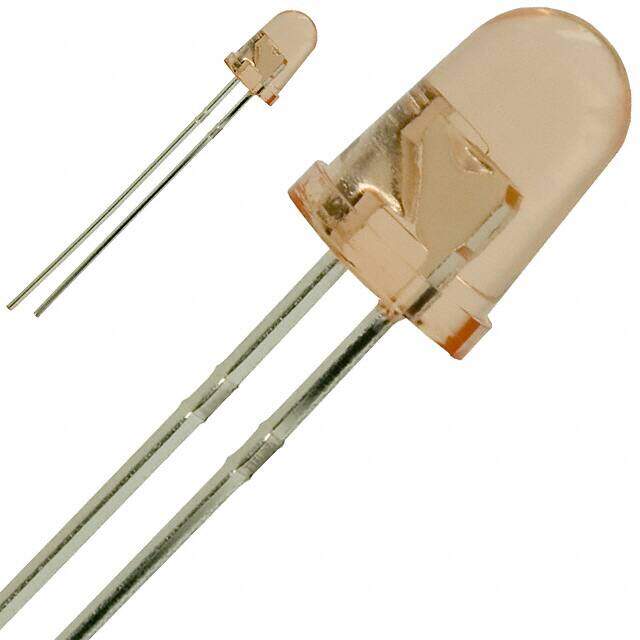

EFA5365S
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED ORANGE CLEAR 5MM ROUND T/H
PDF
/
Inventory: 4670
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Wavelength - Dominant 605nm
Packaging Bulk
Published 2001
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Orange
Depth 5.6mm
Number of Elements 1
Configuration Standard
Power Dissipation 125mW
Voltage - Forward (Vf) (Typ) 1.9V
Viewing Angle 45°
Forward Current 50mA
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Forward Voltage 1.9V
Luminous Intensity 1.16 cd
Millicandela Rating 1160mcd
Lens Transparency Clear
Wavelength - Peak 609nm
Lens Color Orange
Reverse Voltage 5V
Wavelength 609 nm
Dimensions
Diameter 5mm
Height 7.8mm
Length 5.6mm
Height (Max) 7.80mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Supplier Device Package 5mm Round
