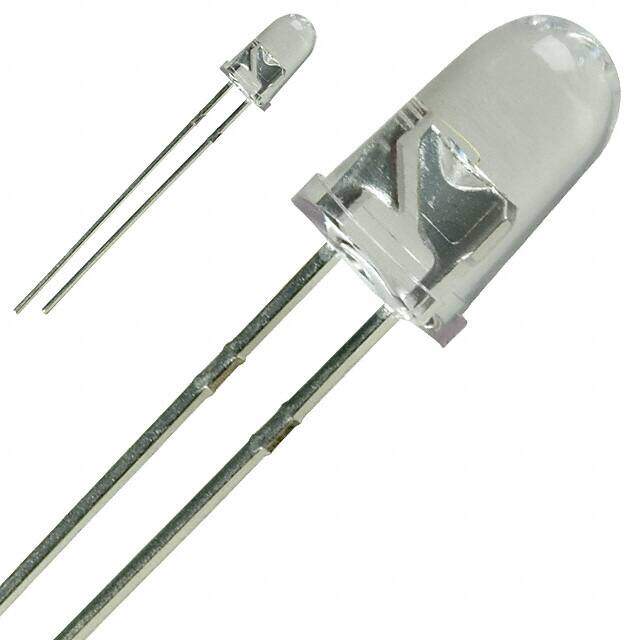

DG5306X
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 5MM ROUND T/H
PDF
/
Inventory: 7960
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Technical
Packaging Bulk
Published 2001
JESD-609 Code e0
Pbfree Code no
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Terminal Finish Tin/Lead (Sn/Pb)
Color Green
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Number of Functions 1
Terminal Pitch 2.5mm
Reach Compliance Code unknown
Operating Temperature (Max) 85°C
Operating Temperature (Min) -40°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 3.5V
Viewing Angle 10°
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 20mA
Lens Style Round with Domed Top
Lens Size 5mm T-1 3/4
Luminous Intensity 2.4 cd
Millicandela Rating 2400mcd
Lens Transparency Clear
Wavelength - Peak 522nm
Lens Color Colorless
Forward Current-Max 0.025A
Forward Voltage-Max 4V
Wavelength - Dominant 525nm
Reverse Voltage-Max 5V
Dimensions
Height 8.8mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
