DG5305S
RoHS
/
Package Radial
Category Optoelectronics / LED Indication - Discrete
Description

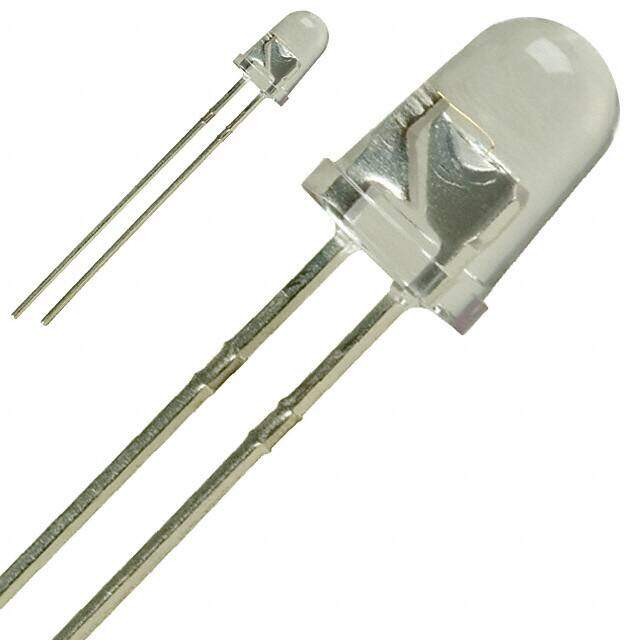

LED GREEN CLEAR 5MM ROUND T/H
PDF
/
Inventory: 6157
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 7.8mm
Technical
Reverse Voltage-Max 5V
Wavelength - Dominant 525nm
Forward Voltage-Max 4V
Forward Current-Max 0.025A
Lens Color Colorless
Wavelength - Peak 522nm
Lens Transparency Clear
Luminous Intensity 800 mcd
Lens Size 5mm T-1 3/4
Lens Style Round with Domed Top
Current - Test 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 30°
Voltage - Forward (Vf) (Typ) 3.5V
Configuration Standard
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Reach Compliance Code unknown
Terminal Pitch 2.5mm
Number of Functions 1
Subcategory Visible LEDs
HTS Code 8541.40.20.00
Color Green
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 2
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code no
JESD-609 Code e0
Packaging Bulk
Physical
Package / Case Radial
Mounting Type Through Hole
Mount Through Hole
