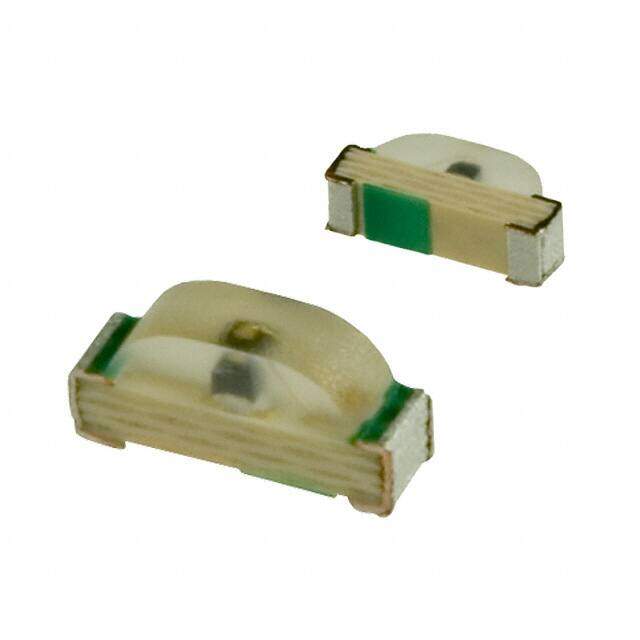

BR1113F-TR
RoHS
/
Package 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
Red 1.7 mm 131/153° 11.7 mcd White Diffused 1.7 V LED Surface Mount
PDF
/
Inventory: 2126
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case 2-SMD, No Lead
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2010
Series 1113F
Size / Dimension 2.10mm Lx1.00mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Red
Packing Method BULK
Number of Functions 1
Depth 1.7mm
Number of Elements 1
Configuration Standard
Power Dissipation 57.5mW
Voltage - Forward (Vf) (Typ) 1.7V
Viewing Angle 131°, 153°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 25mA
Current - Test 20mA
Lens Style Rectangle with Domed Top
Lens Size 1.70mmx0.60mm
Luminous Intensity 11.7 mcd
Lens Transparency Diffused
Wavelength - Peak 660nm
Lens Color White
Reverse Voltage 4V
Wavelength - Dominant 647nm
Dimensions
Height 600μm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
