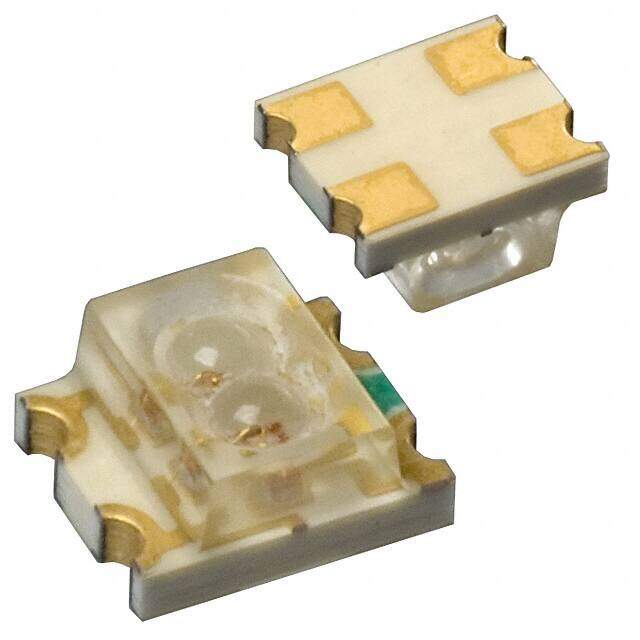

AAPY1204W-TR
RoHS
/
Package 4-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
2.5x2mm Green/Yellow(6/12mcd)-Orange(5/9mcd) 80/80° Water Clear Surface Mount LED
PDF
/
Inventory: 10042
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Supplier Device Package 1210
Technical
Packaging Tape & Reel (TR)
Published 2001
Series 1204W
Size / Dimension 3.00mm Lx2.50mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Color Green, Orange
Configuration Independent
Voltage - Forward (Vf) (Typ) 2.1V Green 2.2V Orange
Viewing Angle 80°
Current - Test 20mA Green 20mA Orange
Lens Style Rectangle with Flat Top
Lens Size 1.80mmx2.50mm
Forward Voltage 2.1V
Luminous Intensity 9 mcd
Millicandela Rating 12mcd Green, 9mcd Orange
Lens Transparency Clear
Wavelength - Peak 570nm Green 605nm Orange
Lens Color Colorless
Wavelength 570 nm
Wavelength - Dominant 572nm Green 606nm Orange
Dimensions
Height 1.5mm
Length 3mm
Width 2.5mm
Height (Max) 1.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
