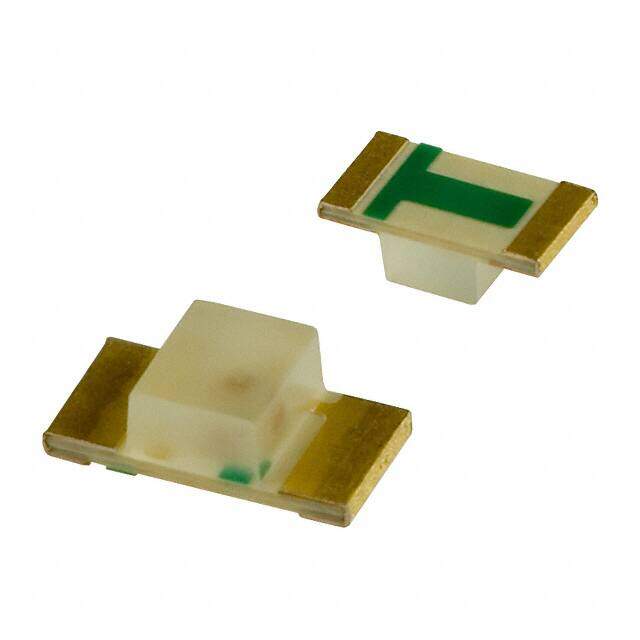

AA1111R-TR image
Favorite
AA1111R-TR image
Favorite
RoHS
/
Package 1206 (3216 Metric)
Category Optoelectronics / LED Indication - Discrete
Description 1111R Series 3216 144/150° Single Orange Color Surface Mount LED With Clear Lens
PDF
/
Inventory: 2370
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount, Bottom Entry
Package / Case 1206 (3216 Metric)
Number of Pins 2
Shape RECTANGULAR

Technical

Packaging Tape & Reel (TR)
Series 1111R
Size / Dimension 3.20mm Lx1.60mm W
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Orange
Packing Method TAPE AND REEL
Number of Functions 1
Depth 3.2mm
Reach Compliance Code unknown
Case Code (Metric) 3216
Case Code (Imperial) 1206
Number of Elements 1
Configuration Standard
Power Dissipation 70mW
Voltage - Forward (Vf) (Typ) 2.2V
Viewing Angle 144°, 150°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 25mA
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.40mmx1.60mm
Luminous Intensity 3.7 mcd
Lens Transparency Diffused
Wavelength - Peak 605nm
Lens Color White
Reverse Voltage 4V
Wavelength - Dominant 606nm

Dimensions

Height 1.1mm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
