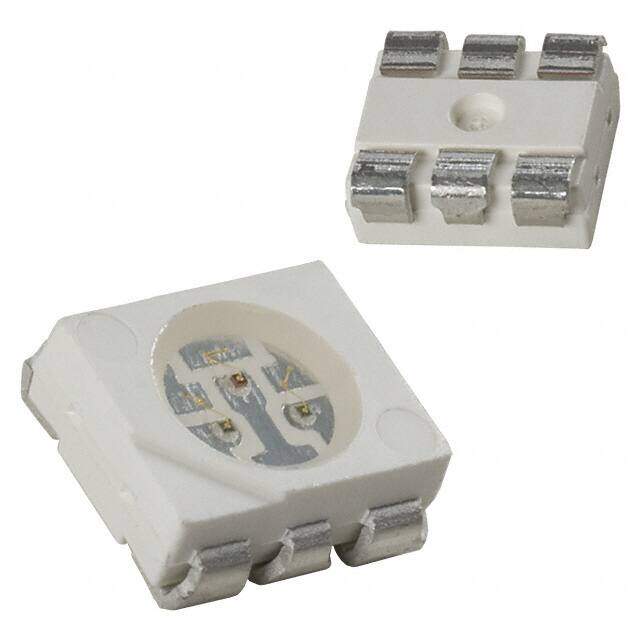

GM5WA06250A
RoHS
/
Package 6-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR 6SMD
PDF
/
Inventory: 3211
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 2.4mm
Diameter 4mm
Technical
T-code T1-1/2
Wavelength - Dominant 628nm Red 520nm Green 469nm Blue
Wavelength 469 nm
Forward Current-Max 0.05A
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 1450mcd Red, 1450mcd Green, 1450mcd Blue
Luminous Intensity 1.45 cd
Lens Size 4.00mm Dia
Lens Style Round with Flat Top
Current - Test 40mA Red 40mA Green 40mA Blue
Optoelectronic Device Type TRIPLE COLOR LED
Viewing Angle 120 °
Voltage - Forward (Vf) (Typ) 2.3V Red 4.2V Green 4.2V Blue
Configuration Independent
Operating Temperature (Min) -30°C
Operating Temperature (Max) 85°C
Reach Compliance Code unknown
Number of Functions 1
Packing Method TAPE AND REEL
Color Red, Green, Blue (RGB)
Number of Terminations 6
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Size / Dimension 6.00mm Lx5.00mm W
Published 2002
Packaging Tape & Reel (TR)
Physical
Package / Case 6-SMD, J-Lead
Mounting Type Surface Mount
Mount Surface Mount
