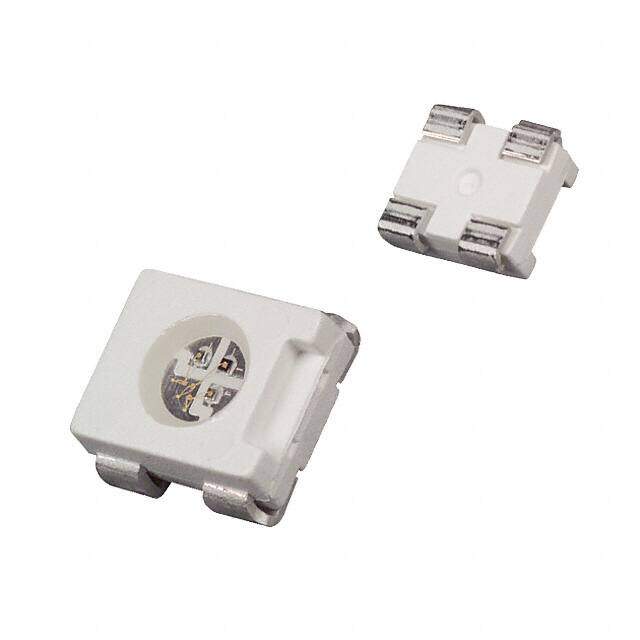

GM5WA02200A
RoHS
/
Package 4-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB CLEAR 4SMD
PDF
/
Buying Options
Total Price: USD $0.4
Unit Price: USD $0.4028
≥1 USD $0.4028
≥10 USD $0.3306
≥100 USD $0.32015
≥500 USD $0.31065
≥1000 USD $0.3002
Inventory: 1332
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-SMD, J-Lead
Number of Pins 4
Technical
Packaging Tape & Reel (TR)
Published 2001
Size / Dimension 6.00mm Lx5.00mm W
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Terminal Finish Tin/Lead (Sn/Pb)
Color Red, Green, Blue (RGB)
Packing Method BULK
Number of Functions 1
Operating Temperature (Max) 110°C
Operating Temperature (Min) -55°C
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2V Red 4.5V Green 4.5V Blue
Optoelectronic Device Type TRIPLE COLOR LED
Current - Test 40mA Red 40mA Green 40mA Blue
Lens Style Round with Flat Top
Lens Size 3.20mm Dia
Luminous Intensity 150 mcd
Millicandela Rating 300mcd Red, 500mcd Green, 150mcd Blue
Lens Transparency Clear
Wavelength - Peak 647nm Red 518nm Green 468nm Blue
Lens Color Colorless
Forward Current-Max 0.05A
Wavelength - Dominant 635nm Red 525nm Green 470nm Blue
Number of LEDs 3
Dimensions
Diameter 3.2mm
Height 2.4mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
