GM5SAE57P0A image
Favorite
GM5SAE57P0A image
Favorite
RoHS
/
Package PLCC
Category Optoelectronics / LED Indication - Discrete

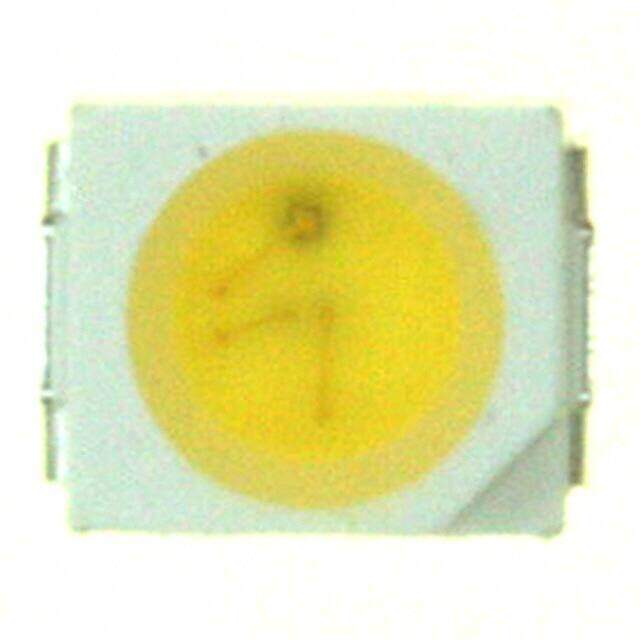

Description SHARP GM5SAE57P0A LED, PLCC2, 5.5LM, 5700K, CRI 80
PDF
/
Inventory: 2632
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Package / Case PLCC
Number of Pins 2

Technical

Packaging Tape & Reel (TR)
Published 2009
Part Status Obsolete
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Max Operating Temperature 100°C
Min Operating Temperature -30°C
Color White
Packing Method TAPE AND REEL
Max Power Dissipation 123mW
Number of Functions 1
Terminal Pitch 3mm
Depth 2.8mm
Number of Elements 1
Configuration SINGLE WITH BUILT-IN ZENER DIODE
Power Dissipation 111mW
Viewing Angle 120 °
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 30mA
Lens Style Circular, Diffused, Flat, Round
Test Current 20mA
Forward Voltage 3.2V
Luminous Intensity 2.2 cd
Luminous Flux 5.5 lm
Color Rendering Index (CRI) 80

Dimensions

Height 1.9mm
Length 3.2mm
Width 2.8mm

Compliance

Radiation Hardening No
REACH SVHC Unknown
Lead Free Lead Free
