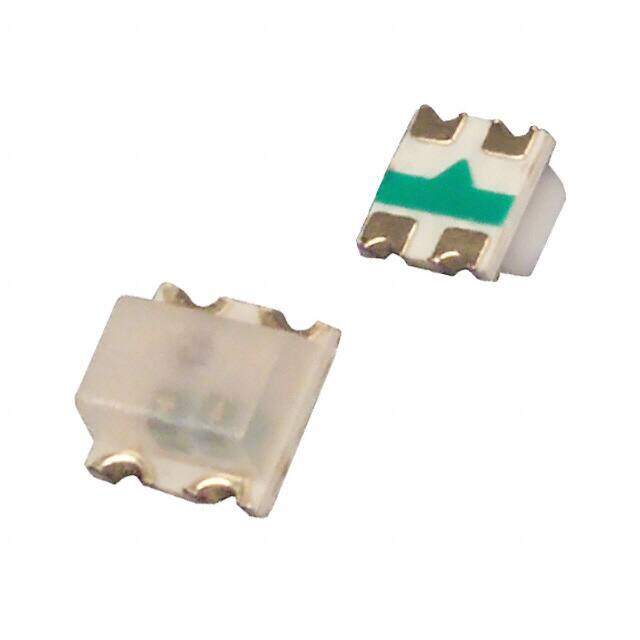

GM1WA80350A
RoHS
/
Package /
Category Optoelectronics / LED Indication - Discrete
Description
LED BL/GRN/ORG CLEAR 0606 SMD
PDF
/
Buying Options
Total Price: USD $1.06
Unit Price: USD $1.0648
≥1 USD $1.0648
≥10 USD $0.91784
Inventory: 145
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Number of Pins 4
Technical
Packaging Tape & Reel (TR)
Published 2001
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Color Blue, Green, Orange
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 1.8mm
Depth 1.6mm
Case Code (Metric) 1616
Case Code (Imperial) 0606
Number of Elements 3
Power Dissipation 78mW
Optoelectronic Device Type TRIPLE COLOR LED
Forward Current 20mA
Lens Style Colorless, Diffused, Rectangular
Test Current 15mA
Forward Voltage 2.1V
Luminous Intensity 100 mcd
Lens Transparency Clear
Lens Color Colorless
Reverse Voltage 5V
Wavelength 627 nm
Dominant Wavelength 618 nm
Dimensions
Height 900μm
Length 1.6mm
Width 1.6mm
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
