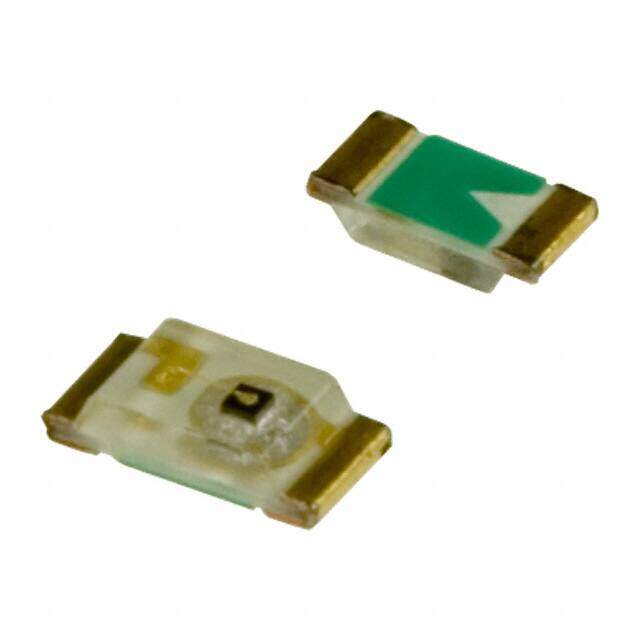

GM1JV35200AE image
Favorite
GM1JV35200AE image
Favorite
RoHS
/
Package 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED AMBER CLEAR 0603 SMD
PDF
/
Inventory: 8282
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Shape RECTANGULAR

Technical

Packaging Tape & Reel (TR)
Published 2001
Size / Dimension 1.60mm Lx0.80mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Color Amber
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 1.65mm
Case Code (Metric) 1608
Case Code (Imperial) 0603
Operating Temperature (Max) 85°C
Operating Temperature (Min) -30°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 150 °
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 5mA
Lens Style Rectangle with Flat Top
Lens Size 1.00mmx0.80mm
Luminous Intensity 19 mcd
Illumination Color Orange
Lens Transparency Clear
Wavelength - Peak 591nm
Lens Color Colorless
Forward Current-Max 0.02A
Wavelength - Dominant 588nm

Dimensions

Height 400μm

Compliance

Radiation Hardening No
RoHS Status Non-RoHS Compliant
