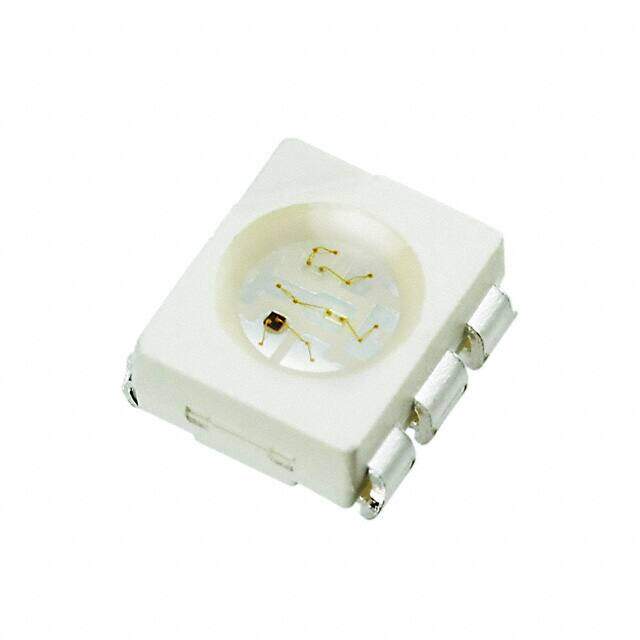

SFT722N-S
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD, J-Lead
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB 623NM 527NM 460NM 6SMD
PDF
/
Buying Options
Total Price: USD $1.63
Unit Price: USD $1.628
≥1 USD $1.628
≥10 USD $1.03136
≥100 USD $0.76296
Inventory: 242
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD, J-Lead
Number of Pins 6
Technical
Packaging Cut Tape (CT)
Published 2009
Size / Dimension 6.00mm Lx5.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Red, Green, Blue (RGB)
Additional Feature HIGH RELIABILITY
HTS Code 8541.40.20.00
Power Rating 114mW
Packing Method TAPE AND REEL 7"
Number of Functions 1
Terminal Pitch 5.7mm
Configuration Independent
Voltage - Forward (Vf) (Typ) 2.1V Red 3.2V Green 3.2V Blue
Viewing Angle 120°
Optoelectronic Device Type TRIPLE COLOR LED
Forward Current 20mA
Current - Test 20mA Red 20mA Green 20mA Blue
Lens Style Round with Flat Top
Lens Size 4.00mm Dia
Luminous Intensity 200 mcd
Millicandela Rating 700mcd Red, 1200mcd Green, 200mcd Blue
Wavelength - Peak 632nm Red 518nm Green 453nm Blue
Luminous Flux 3 lm
Wavelength - Dominant 623nm Red 527nm Green 460nm Blue
Number of LEDs 3
Dimensions
Height 2.5mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
