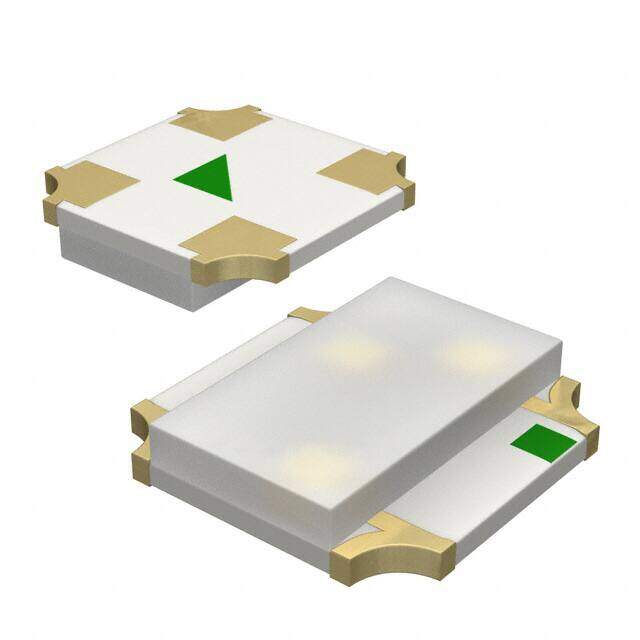

SMLP34RGB1W3
RoHS
RoHS compliant
RoHS compliantPackage 0404 (1010 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RGB DIFFUSED PICOLED SMD
PDF
/
Buying Options
Total Price: USD $0.08
Unit Price: USD $0.0836
≥1 USD $0.0836
≥10 USD $0.0684
≥100 USD $0.0665
≥500 USD $0.0646
≥1000 USD $0.06175
≥10000 USD $0.05605
Inventory: 16796
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0404 (1010 Metric)
Number of Pins 4
Technical
Packaging Tape & Reel (TR)
Published 2012
Series PicoLED?
Size / Dimension 1.00mm Lx1.00mm W
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Max Operating Temperature 85°C
Min Operating Temperature -40°C
Color Red, Green, Blue (RGB)
Base Part Number SML-P34
Case Code (Metric) 1010
Case Code (Imperial) 0404
Configuration Common Anode
Voltage - Forward (Vf) (Typ) 2.1V Red 3.1V Green 3V Blue
Viewing Angle 135 °
Optoelectronic Device Type TRIPLE COLOR LED
Forward Current 5mA
Current - Test 5mA Red 5mA Green 5mA Blue
Lens Style Rectangle with Flat Top
Lens Size 1.00mmx0.60mm
Luminous Intensity 45 mcd
Millicandela Rating 35mcd Red, 110mcd Green, 45mcd Blue
Lens Transparency Diffused
Lens Color White
Wavelength - Dominant 624nm Red 527nm Green 470nm Blue
Number of LEDs 3
Dimensions
Height 250μm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
