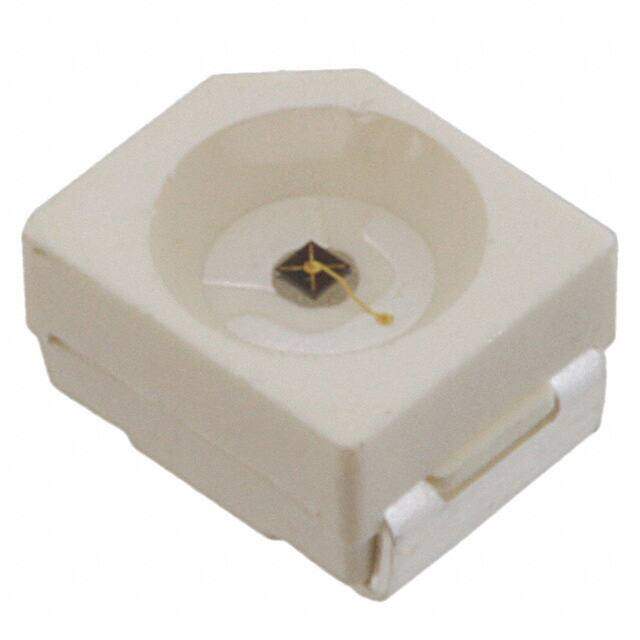

SML-Z14F4TT86
RoHS
RoHS compliant
RoHS compliantPackage 2-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 2PLCC SMD
PDF
/
Buying Options
Total Price: USD $0.63
Unit Price: USD $0.6336
≥1 USD $0.6336
≥10 USD $0.41536
≥100 USD $0.27192
≥500 USD $0.21465
Inventory: 571
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 2.05mm
Technical
Number of LEDs 1
Wavelength - Dominant 565nm
Forward Current-Max 0.07A
Lens Color Colorless
Lens Transparency Clear
Luminous Intensity 120 mcd
Lens Size 2.40mm Dia
Lens Style Round with Flat Top
Current - Test 50mA
Optoelectronic Device Type SINGLE COLOR LED
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Operating Temperature (Min) -40°C
Base Part Number SML-Z14
Terminal Pitch 3mm
Number of Functions 1
Packing Method TR, 7 INCH
Color Green
Number of Terminations 2
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Size / Dimension 3.20mm Lx2.80mm W
Series SML-Z1
Published 2015
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case 2-PLCC
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
