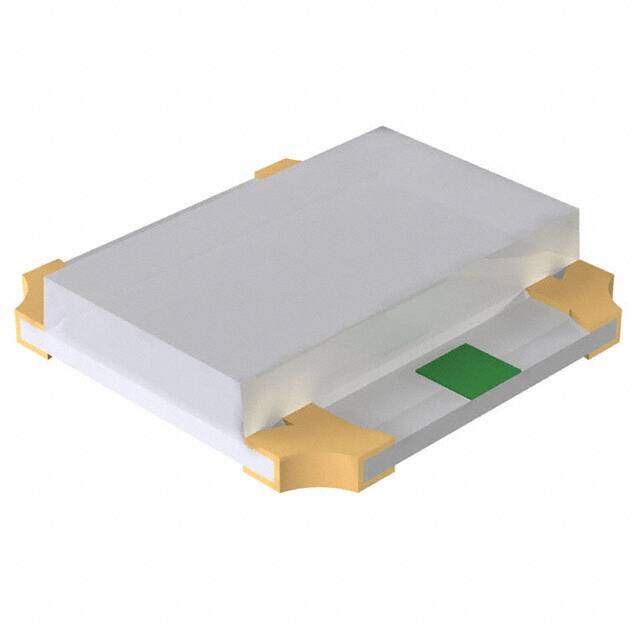

SML-P24MUWT86R image
Favorite
SML-P24MUWT86R image
Favorite

SML-P24MUWT86R

ROHM Semiconductor
RoHS
RoHS RoHS compliant
Package 0404 (1010 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED GREEN/RED DIFFUSED 0404 SMD
PDF
/
Buying Options
Total Price: USD $0.24
Unit Price: USD $0.23754
≥1 USD $0.23754
≥10 USD $0.22409
≥100 USD $0.21141
≥500 USD $0.19944
≥1000 USD $0.18815
Inventory: 10000
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0404 (1010 Metric)
Number of Pins 4
Shape RECTANGULAR

Technical

Packaging Tape & Reel (TR)
Published 2010
Series PicoLED?
Size / Dimension 1.00mm Lx1.00mm W
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Color Green, Red
Subcategory Visible LEDs
Packing Method TR, 7 INCH
Number of Functions 1
Terminal Pitch 0.8mm
Case Code (Metric) 1010
Case Code (Imperial) 0404
Operating Temperature (Max) 85°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 2.2V Green 2.1V Red
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Red
Lens Style Rectangle with Flat Top
Lens Size 1.00mmx0.60mm
Luminous Intensity 52 mcd
Millicandela Rating 21mcd Green, 52mcd Red
Lens Transparency Diffused
Lens Color White
Wavelength - Dominant 572nm Green 620nm Red
Number of LEDs 2
Reverse Voltage-Max 5V

Dimensions

Height 250μm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Lead Free Lead Free
