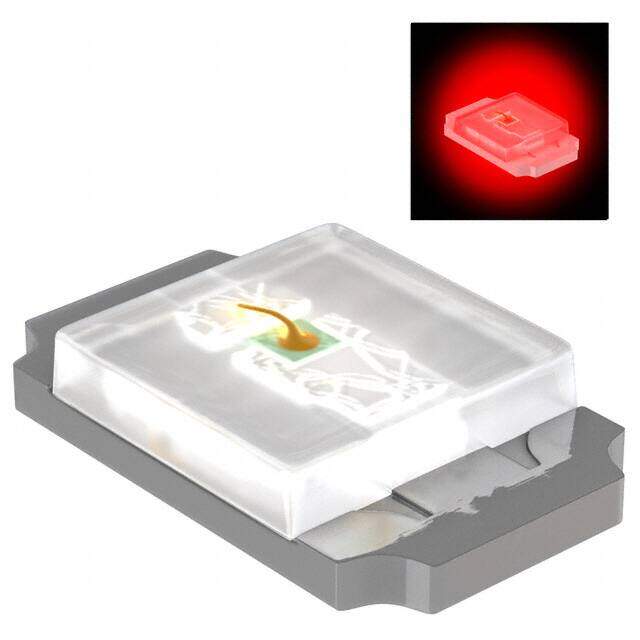

SML-P12UTT86 image
Favorite
SML-P12UTT86 image
Favorite

SML-P12UTT86

ROHM Semiconductor
RoHS
RoHS RoHS compliant
Package 0402 (1006 Metric)
Category Optoelectronics / LED Indication - Discrete
Description LED RED CLEAR 1006 SMD
PDF
/
Buying Options
Total Price: USD $0.11
Unit Price: USD $0.11115
≥1 USD $0.11115
≥10 USD $0.0912
≥100 USD $0.08835
≥500 USD $0.0855
≥1000 USD $0.08265
Inventory: 31306
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No

Dimensions

Height 250μm

Technical

Number of LEDs 1
Wavelength - Dominant 620nm
Wavelength 620 nm
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 85mcd
Luminous Intensity 85 mcd
Lens Size 0.60mm
Lens Style Square with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 140 °
Current 2A
Voltage 2V
Configuration Standard
Case Code (Imperial) 0402
Case Code (Metric) 1005
Base Part Number SML-P12
Terminal Pitch 0.9mm
Number of Functions 1
Packing Method TAPE AND REEL 7"
Power Rating 50mW
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 1.00mm Lx0.60mm W
Series PicoLED?
Published 2008
Packaging Tape & Reel (TR)

Physical

Number of Pins 2
Package / Case 0402 (1006 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 4 Weeks
