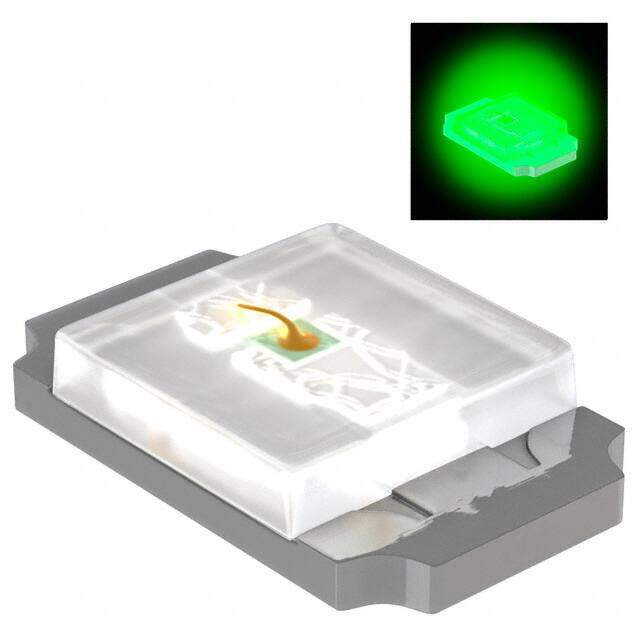

SML-P12PTT86
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1006 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 1006 SMD
PDF
/
Buying Options
Total Price: USD $0.41
Unit Price: USD $0.4136
≥1 USD $0.4136
≥10 USD $0.25608
≥100 USD $0.147224
≥500 USD $0.115192
≥1000 USD $0.105591
≥3000 USD $0.09599
Inventory: 3757
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Height 250μm
Technical
Number of LEDs 1
Wavelength 560 nm
Reverse Voltage 5V
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 6.3mcd
Luminous Intensity 13 mcd
Lens Size 0.60mm
Lens Style Square with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 140 °
Voltage - Forward (Vf) (Typ) 2.2V
Power Dissipation 52mW
Configuration Standard
Case Code (Imperial) 0402
Case Code (Metric) 1005
Base Part Number SML-P12
Terminal Pitch 0.9mm
Number of Functions 1
Packing Method TR, 7 INCH
Power Rating 54mW
Subcategory Visible LEDs
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Terminal Finish Gold (Au)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 1.00mm Lx0.60mm W
Series PicoLED?
Published 2007
Packaging Tape & Reel (TR)
Physical
Number of Pins 2
Package / Case 0402 (1006 Metric)
Mounting Type Surface Mount
Mount Surface Mount
