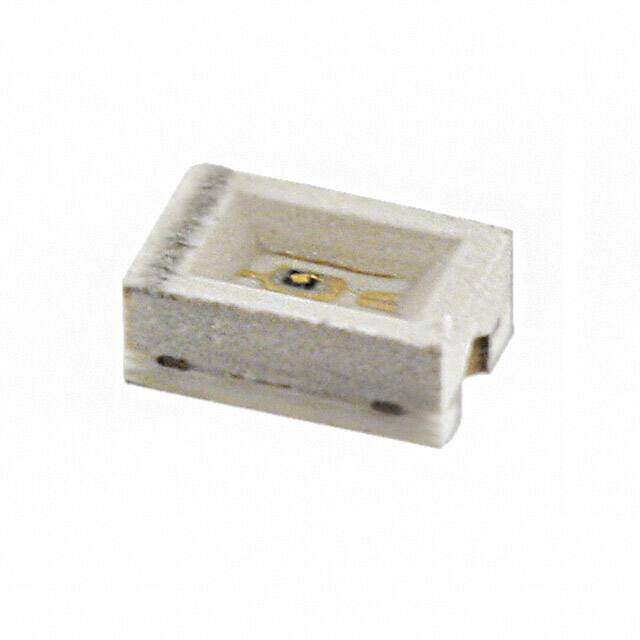

SML-M13VTT86
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR 0805 SMD
PDF
/
Buying Options
Total Price: USD $0.45
Unit Price: USD $0.4488
≥1 USD $0.4488
≥10 USD $0.29744
≥100 USD $0.196856
≥500 USD $0.151967
Inventory: 549
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height 900μm
Technical
Number of LEDs 1
Wavelength - Dominant 630nm
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 75mcd
Luminous Intensity 75 mcd
Lens Size 1.40mmx0.85mm
Lens Style Rectangle with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Voltage - Forward (Vf) (Typ) 2V
Configuration Standard
Case Code (Imperial) 0805
Case Code (Metric) 2012
Base Part Number SML-M13
Number of Functions 1
Packing Method TR, 7 INCH
Color Red
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Size / Dimension 2.00mm Lx1.25mm W
Series SML-M1
Published 2016
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 0805 (2012 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
