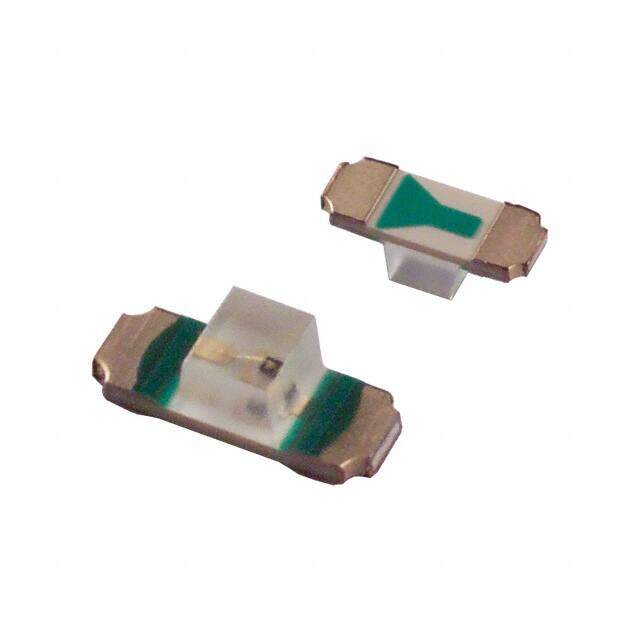

SML-812MTT86
RoHS
RoHS compliant
RoHS compliantPackage 1305 (3412 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GREEN CLEAR 3412 SMD
PDF
/
Buying Options
Total Price: USD $0.42
Unit Price: USD $0.4224
≥1 USD $0.4224
≥10 USD $0.27544
≥100 USD $0.1804
≥500 USD $0.1672
Inventory: 50554
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Height 1.15mm
Technical
Reverse Voltage-Max 4V
Number of LEDs 1
Wavelength 572 nm
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 40mcd
Luminous Intensity 40 mcd
Lens Size 1.20mmx1.25mm
Lens Style Rectangle with Flat Top
Forward Current 20mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 140 °
Voltage - Forward (Vf) (Typ) 2.1V
Configuration Standard
Case Code (Imperial) 1305
Case Code (Metric) 3412
Base Part Number SML-812
Number of Functions 1
Packing Method TAPE AND REEL
Subcategory Visible LEDs
Color Green
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Number of Terminations 2
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Size / Dimension 3.40mm Lx1.25mm W
Series SML-81
Published 2008
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 1305 (3412 Metric)
Mounting Type Surface Mount, Bottom Entry
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
