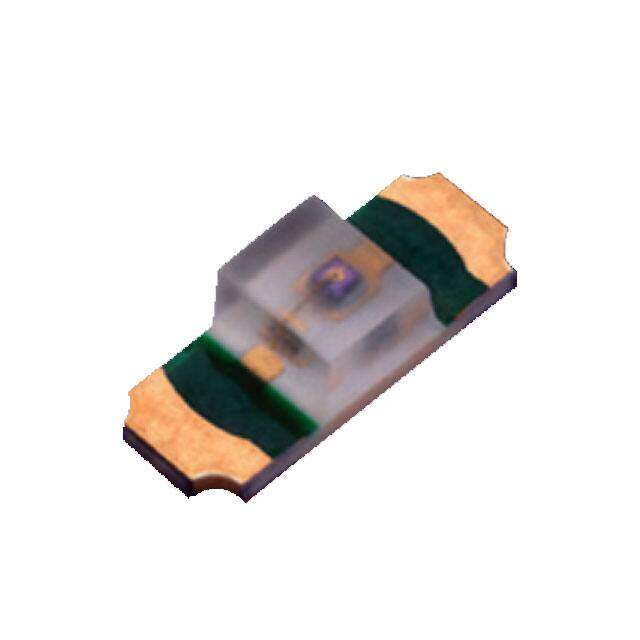

SML-811DTT86
RoHS
RoHS compliant
RoHS compliantPackage 1305 (3412 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED ORANGE CLEAR 3412 SMD
PDF
/
Buying Options
Total Price: USD $0.5
Unit Price: USD $0.5016
≥1 USD $0.5016
≥10 USD $0.32912
≥100 USD $0.217888
≥500 USD $0.168194
Inventory: 2580
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount, Bottom Entry
Package / Case 1305 (3412 Metric)
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2006
Series SML-811
Size / Dimension 3.40mm Lx1.25mm W
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Terminal Finish Gold (Au) - with Nickel (Ni) barrier
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Color Orange
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method TAPE AND REEL
Number of Functions 1
Terminal Pitch 3.3mm
Case Code (Metric) 3412
Case Code (Imperial) 1305
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.95V
Viewing Angle 140 °
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 10mA
Lens Style Rectangle with Flat Top
Lens Size 1.25mmx1.20mm
Luminous Intensity 22.4 mcd
Millicandela Rating 22.4mcd
Lens Transparency Clear
Lens Color Colorless
Wavelength 611 nm
Wavelength - Dominant 605nm
Reverse Voltage-Max 5V
Dimensions
Height 1.15mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
