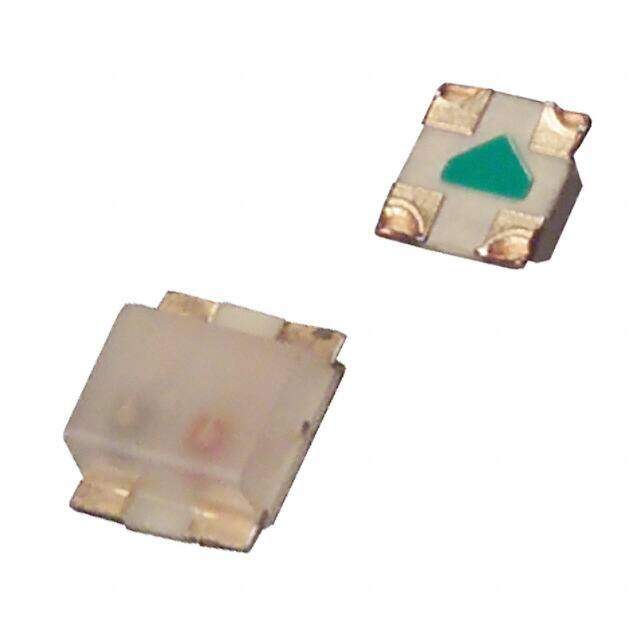

SML-522MD8WT86
RoHS
RoHS compliant
RoHS compliantPackage 0605 (1513 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED GRN/ORANGE DIFFUSED 1315 SMD
PDF
/
Buying Options
Total Price: USD $0.49
Unit Price: USD $0.4928
≥1 USD $0.4928
≥10 USD $0.32384
≥100 USD $0.214016
≥500 USD $0.165246
≥1000 USD $0.149318
Inventory: 1691
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0605 (1513 Metric)
Number of Pins 4
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2015
Series SML-52
Size / Dimension 1.50mm Lx1.30mm W
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 4
Color Green, Orange
Packing Method TR, 7 INCH
Number of Functions 1
Base Part Number SML-522
Operating Temperature (Max) 85°C
Configuration Independent
Voltage - Forward (Vf) (Typ) 2.2V Green 2.2V Orange
Optoelectronic Device Type DUAL COLOR LED
Current - Test 20mA Green 20mA Orange
Lens Style Rectangle with Flat Top
Lens Size 1.30mmx1.10mm
Luminous Intensity 100 mcd
Millicandela Rating 25mcd Green, 100mcd Orange
Lens Transparency Diffused
Lens Color White
Wavelength - Dominant 572nm Green 605nm Orange
Number of LEDs 2
Dimensions
Height 700μm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
