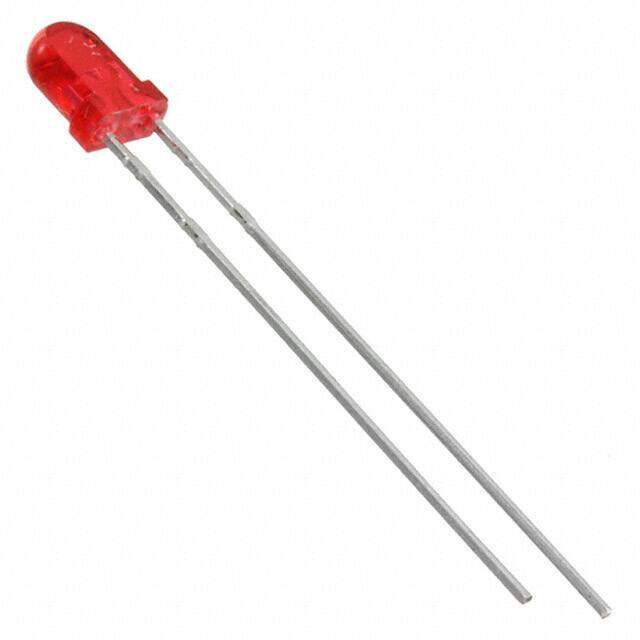

SLR-322VCT32
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Optoelectronics / LED Indication - Discrete
Description
LED RED CLEAR T-1 T/H
PDF
/
Buying Options
Total Price: USD $0.29
Unit Price: USD $0.286041
≥1 USD $0.286041
≥200 USD $0.114143
≥500 USD $0.110323
≥1000 USD $0.108445
Inventory: 4263
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Tape & Box (TB)
Published 2006
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Max Operating Temperature 85°C
Min Operating Temperature -25°C
Color Red
Subcategory Visible LEDs
Packing Method TAPE AND BOX
Number of Functions 1
Base Part Number SLR-322
Configuration Standard
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle 35°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 10mA
Lens Style Round with Domed Top
Lens Size 3.10mm Dia
Luminous Intensity 16 mcd
Millicandela Rating 16mcd
Lens Transparency Clear
Wavelength - Dominant 630nm
Number of LEDs 1
T-code T-1
Reverse Voltage-Max 3V
Peak Wavelength 650 nm
Dimensions
Height 5.4mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
