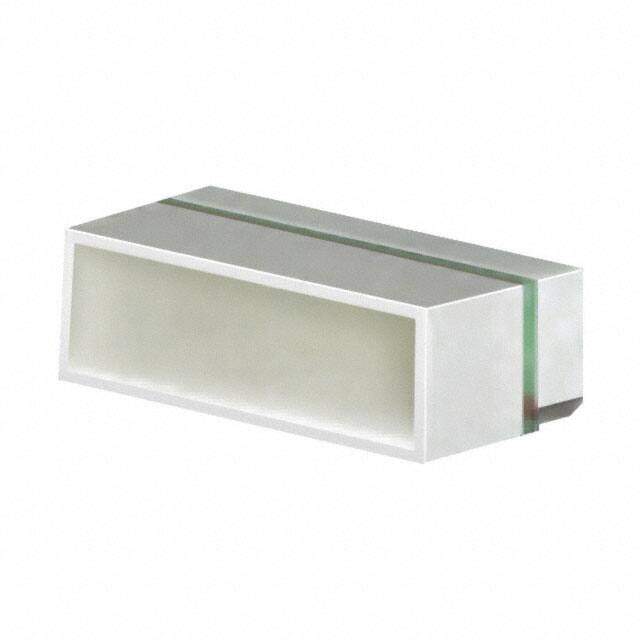

MSL0601RGBU1
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD, No Lead
Category Optoelectronics / LED Indication - Discrete
Description
SMALL AND HIGH BRIGHTNESS SIDE-V
PDF
/
Buying Options
Total Price: USD $0.9
Unit Price: USD $0.8976
≥1 USD $0.8976
≥10 USD $0.56672
≥100 USD $0.419584
≥500 USD $0.399309
Inventory: 26070
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height (Max) 1.10mm
Technical
Wavelength - Dominant 624nm Red 527nm Green 470nm Blue
Overall Height 1mm
Forward Current-Max 0.03A
Lens Color White
Millicandela Rating 700mcd Red, 1250mcd Green, 360mcd Blue
Luminous Intensity 700.0/1250.0/360.0 mcd
Lens Size 2.90mmx1.35mm
Lens Style Rectangle with Flat Top
Current - Test 20mA Red 20mA Green 20mA Blue
Optoelectronic Device Type TRIPLE COLOR LED
Voltage - Forward (Vf) (Typ) 2.1V Red 3.3V Green 3.2V Blue
Configuration Common Anode
Operating Temperature (Min) -40°C
Operating Temperature (Max) 85°C
Number of Functions 1
Packing Method TR, 7 INCH
Additional Feature SIDE VIEW
Color Red, Green, Blue (RGB)
Number of Terminations 4
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Size / Dimension 2.90mm Lx1.35mm W
Series MSL
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Surface Mount YES
Package / Case 2-SMD, No Lead
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
