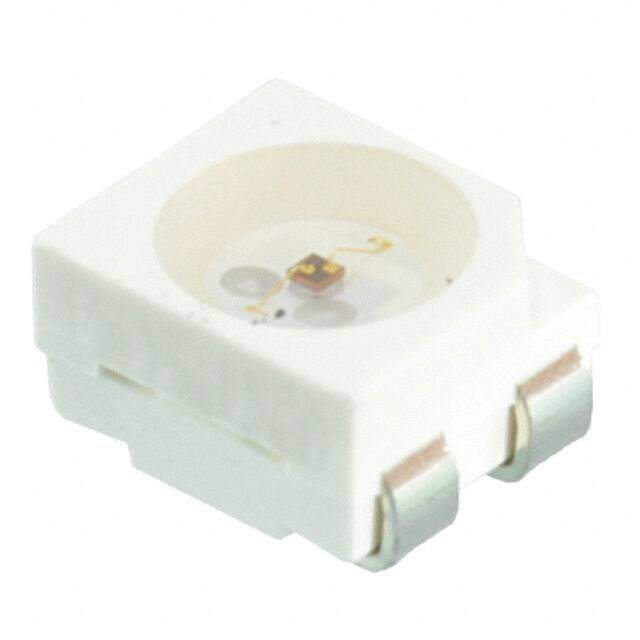

LNJ8L4C28RAA
RoHS
/
Package 4-PLCC
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD TOPLED RED 1810MCD 617NM CLR 4PLCC
PDF
/
Inventory: 2096
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 4-PLCC
Number of Pins 4
Technical
Packaging Tape & Reel (TR)
Published 2010
Size / Dimension 3.20mm Lx2.80mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 4
Color Red
Subcategory Visible LEDs
Packing Method BULK
Number of Functions 1
Reach Compliance Code unknown
Base Part Number LNJ8L4C28
Operating Temperature (Max) 105°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.3V
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 70mA
Current - Test 50mA
Lens Style Round with Flat Top
Lens Size 2.40mm Dia
Luminous Intensity 1.81 cd
Millicandela Rating 1810mcd
Lens Transparency Clear
Wavelength - Peak 623nm
Lens Color Colorless
Forward Voltage-Max 2.65V
Wavelength - Dominant 617nm
Reverse Voltage-Max 5V
Dimensions
Height 1.95mm
Compliance
RoHS Status RoHS Compliant
