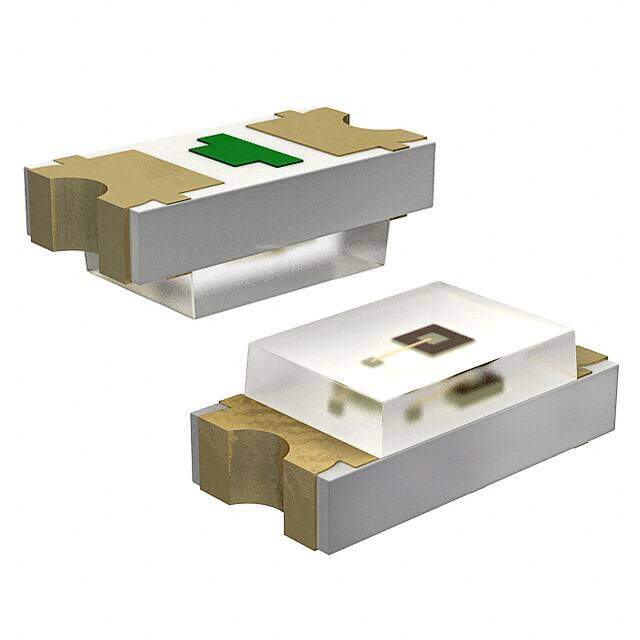

LNJ847W86RA
RoHS
/
Package 0402 (1005 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED ORANGE 1005 SMD
PDF
/
Inventory: 6346
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2014
Size / Dimension 1.00mm Lx0.50mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Orange
Subcategory Visible LEDs
Packing Method BULK
Number of Functions 1
Reach Compliance Code unknown
Base Part Number LNJ*47
Case Code (Metric) 1005
Case Code (Imperial) 0402
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.95V
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 5mA
Lens Style Rectangle with Flat Top
Lens Size 0.70mmx0.50mm
Luminous Intensity 30 mcd
Millicandela Rating 30mcd
Wavelength - Peak 610nm
Wavelength - Dominant 605nm
Number of LEDs 1
Reverse Voltage-Max 4V
Dimensions
Height 200μm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
