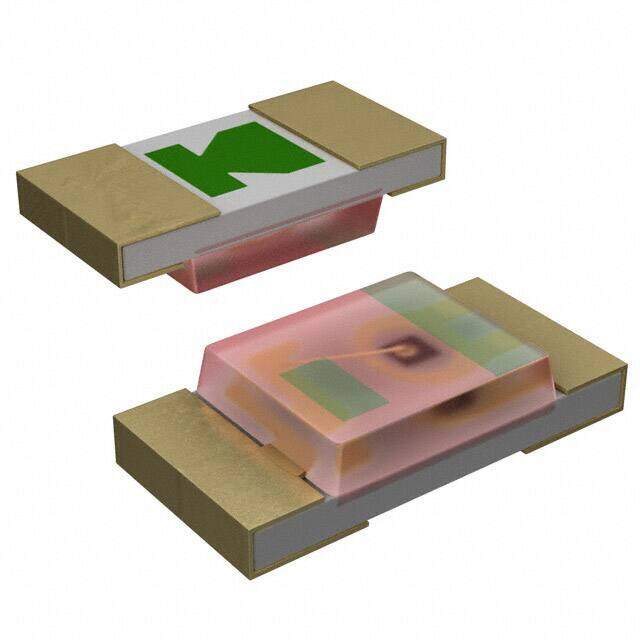

LNJ826W86RA
RoHS
/
Package 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
Standard LEDs - SMD LED SOFT ORG HI-BRT USS
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.26885
≥1 USD $0.26885
≥10 USD $0.2204
≥100 USD $0.21375
≥500 USD $0.2071
≥1000 USD $0.20045
Inventory: 1154
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Number of Pins 2
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2008
Size / Dimension 1.60mm Lx0.80mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Orange
Subcategory Visible LEDs
Packing Method BULK
Number of Functions 1
Reach Compliance Code unknown
Base Part Number LNJ*26
Case Code (Metric) 1608
Case Code (Imperial) 0603
Configuration Standard
Voltage - Forward (Vf) (Typ) 1.92V
Optoelectronic Device Type SINGLE COLOR LED
Forward Current 10mA
Lens Style Rectangle with Flat Top
Lens Size 1.10mmx0.80mm
Luminous Intensity 16.9 mcd
Millicandela Rating 16.9mcd
Wavelength - Peak 610nm
Wavelength - Dominant 605nm
Number of LEDs 1
Reverse Voltage-Max 4V
Dimensions
Height 430μm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
