LNJ812R8DRA
RoHS
/
Package 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description
LED, SMT, TOP FIRE, ORANGE
PDF
/
Inventory: 973
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 550μm
Technical
Dominant Wavelength 630 nm
Reverse Voltage-Max 3V
Luminous Intensity 1 mcd
Lens Size 1.10mmx0.80mm
Lens Style Rectangle with Flat Top
Current - Test 10mA
Forward Current 10mA
Optoelectronic Device Type SINGLE COLOR LED
Viewing Angle 160 deg
Voltage - Forward (Vf) (Typ) 1.93V
Configuration Standard
Case Code (Imperial) 0603
Case Code (Metric) 1608
Base Part Number LNJ*12
Reach Compliance Code unknown
Terminal Pitch 1.3mm
Number of Functions 1
Packing Method BULK
Subcategory Visible LEDs
Color Orange
Min Operating Temperature -30°C
Max Operating Temperature 85°C
Terminal Finish Tin/Lead (Sn/Pb)
Number of Terminations 2
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e0

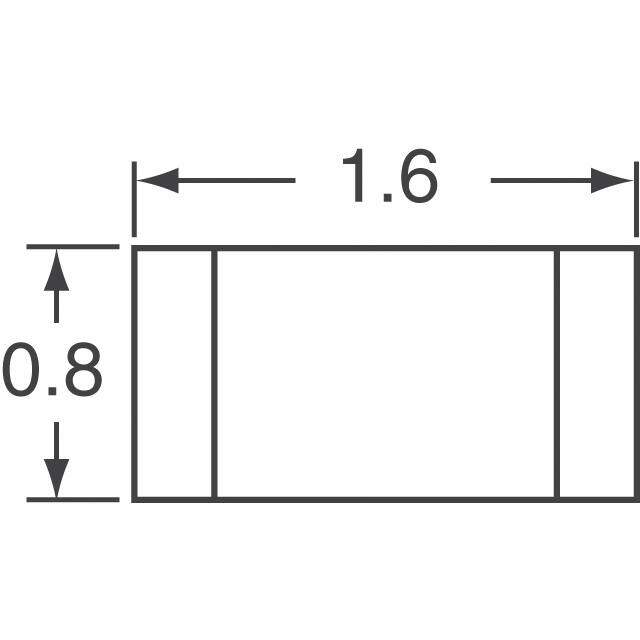

Size / Dimension 1.60mm Lx0.80mm W
Published 2008
Packaging Tape & Reel (TR)
Physical
Shape RECTANGULAR
Number of Pins 2
Package / Case 0603 (1608 Metric)
Mounting Type Surface Mount
Mount Surface Mount
