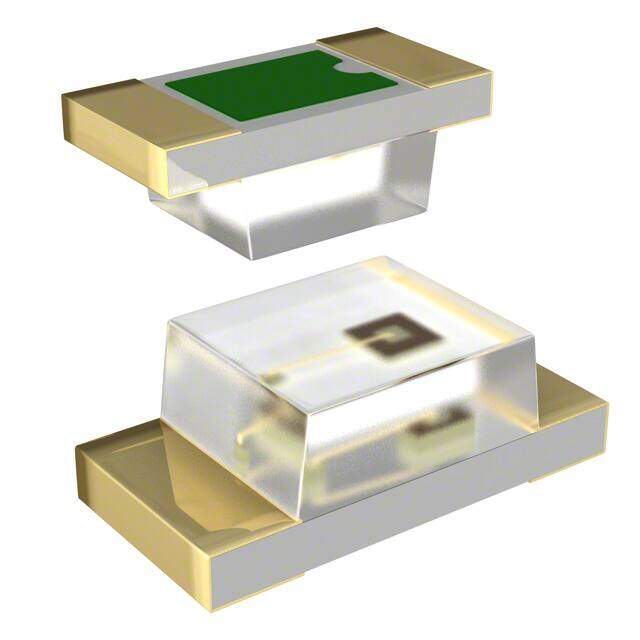

LNJ808R83RA image
Favorite
LNJ808R83RA image
Favorite
RoHS
/
Package 0603 (1608 Metric)
Category Optoelectronics / LED Indication - Discrete
Description Standard LEDs - SMD LED ORG SS TYP
PDF
/
Inventory: 2173
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0603 (1608 Metric)
Shape RECTANGULAR

Technical

Packaging Tape & Reel (TR)
Published 2001
Size / Dimension 1.60mm Lx0.80mm W
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 2
Color Orange
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method BULK
Number of Functions 1
Reach Compliance Code unknown
Base Part Number LNJ*08
Case Code (Metric) 1608
Case Code (Imperial) 0603
Operating Temperature (Max) 85°C
Operating Temperature (Min) -25°C
Configuration Standard
Voltage - Forward (Vf) (Typ) 2.03V
Optoelectronic Device Type SINGLE COLOR LED
Current - Test 10mA
Lens Style Rectangle with Flat Top
Lens Size 0.90mmx0.80mm
Luminous Intensity 32 mcd
Wavelength - Peak 630nm
Forward Current-Max 0.02A
Forward Voltage-Max 2.5V
Reverse Voltage-Max 4V

Dimensions

Height 800μm

Compliance

RoHS Status RoHS Compliant
Lead Free Lead Free
