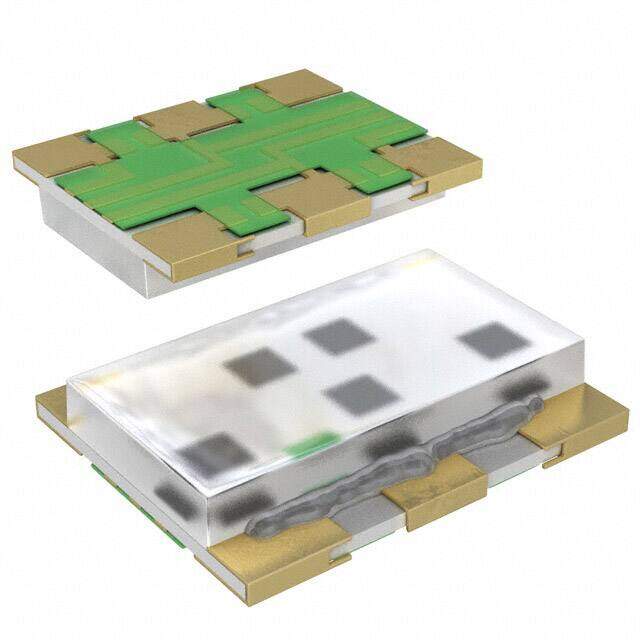

LNJ727W83RAA
RoHS
/
Package 6-SMD; USS-3
Category Optoelectronics / LED Indication - Discrete
Description
LED, SMT. TOP FIRE, AMBER+GREEN+BLUE
PDF
/
Inventory: 4781
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD; USS-3
Number of Pins 6
Shape RECTANGULAR
Technical
Packaging Tape & Reel (TR)
Published 2008
Size / Dimension 2.10mm Lx1.60mm W
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 6
Max Operating Temperature 85°C
Min Operating Temperature -30°C
Color Blue, Green, Orange
HTS Code 8541.40.20.00
Subcategory Visible LEDs
Packing Method BULK
Number of Functions 1
Reach Compliance Code unknown
Base Part Number LNJ727
Configuration Independent
Voltage - Forward (Vf) (Typ) 3.1V Blue 3.1V Green 2V Orange
Optoelectronic Device Type TRIPLE COLOR LED
Current - Test 5mA Blue 5mA Green 10mA Orange
Lens Style Rectangle with Flat Top
Lens Size 2.10mmx1.15mm
Luminous Intensity 40 mcd
Millicandela Rating 15mcd Blue, 80mcd Green, 40mcd Orange
Wavelength - Peak 470nm Blue 525nm Green 630nm Orange
Forward Current-Max 0.02A
Forward Voltage-Max 3.8V
Wavelength - Dominant 472nm Blue 535nm Green 620nm Orange
Reverse Voltage-Max 4V
Dimensions
Height 400μm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
